GR Series Large Vinyl Cutters Features

Get Into the Groove with Perforated Cutting

A new blade holder features two blade positions with the rear position designed for perforated cutting. A specially designed cutting groove in the platen enables the blade to cut clean and avoid unwanted damage to your blade. This makes the GR perfect for creating pop-out decals and packaging prototypes.

Total Flexibility

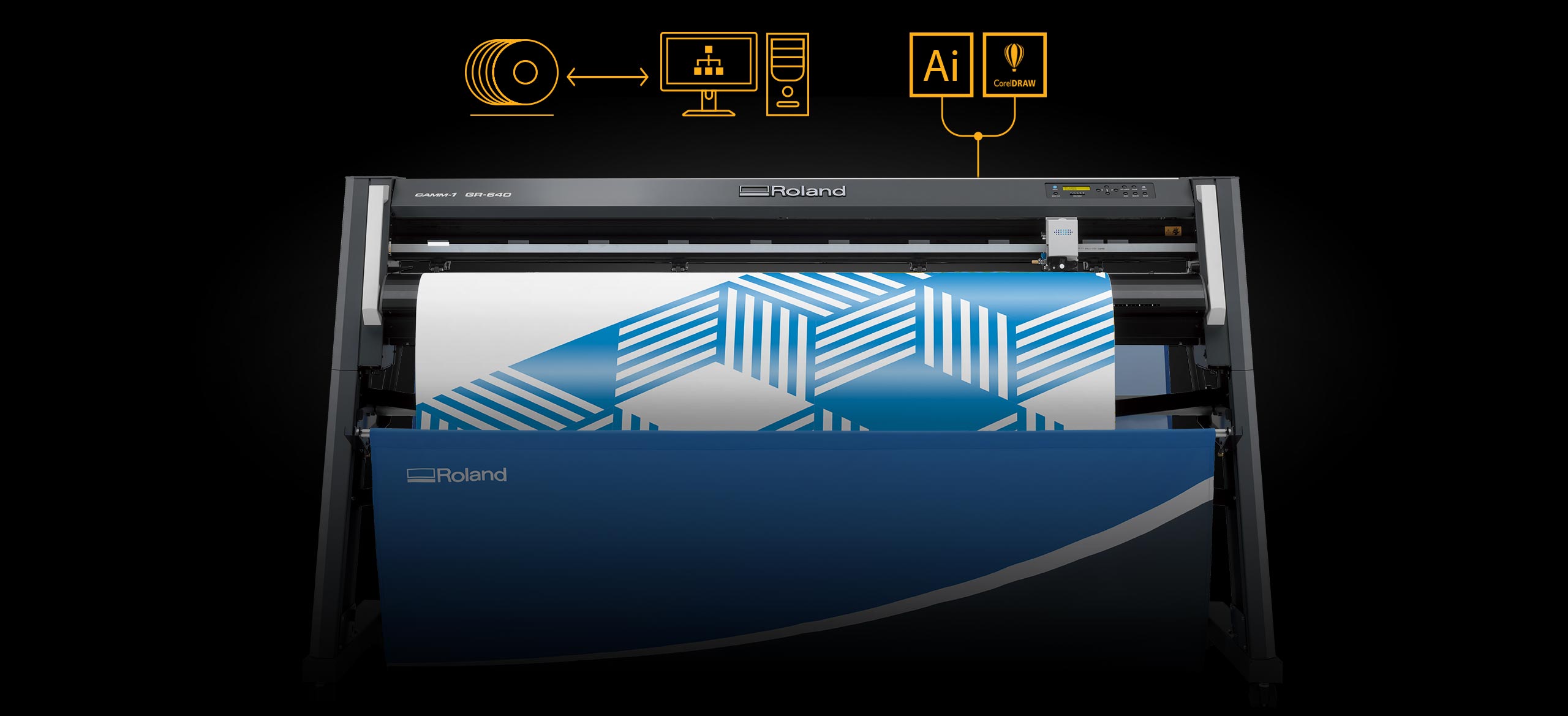

Combine with Your Printer for Print then Cut Workflow

Roland Quadralign™ optical registration system automatically recognizes printer crop marks on printed media. Combine an existing large format printer with a GR cutter for an exact and efficient contour cut graphics workflow.

Use with Included CutStudio or Other Software

Includes Roland CutStudio software and combines easily with other industry-standard software. Plugins for Adobe Illustrator (Mac and PC) and Corel Draw (PC) are also available as additional web downloads.

CutStudio Software Included

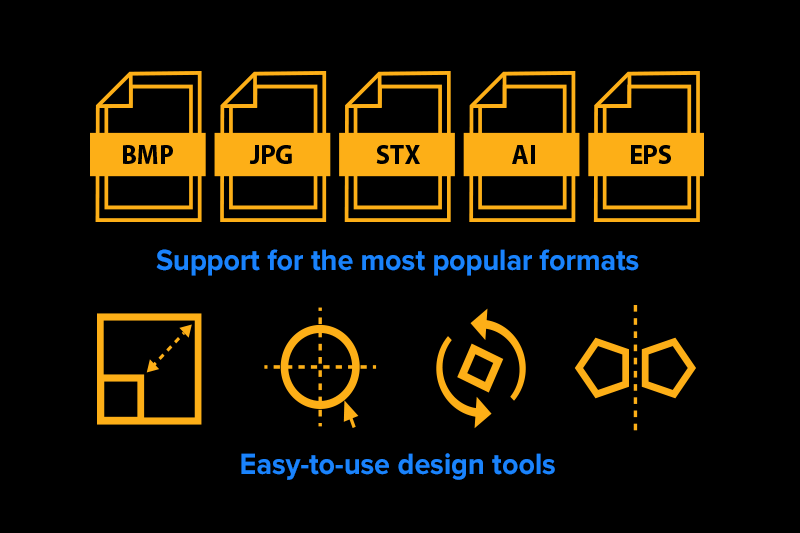

Roland CutStudio allows designers to quickly and easily enlarge, reduce, re-position, rotate and mirror images. BMP, JPG, STX, AI, and EPS file formats are all supported. The latest version includes new scaling and cut-layer outputting functions.

Learn More

Total Control

An LCD control panel and other advanced features give users complete control. In addition to smart new pinch rollers and "on-the-fly" pen force adjustment, GR cutters enable users to manually adjust blade offset values for added cutting precision, store up to 2MB of preset cutting data, and easily follow the status of each cutting job with a handy LED status light. GR large format cutters also feature an Ethernet port to connect your cutter to a network for a streamlined workflow.

Total Power and Stability

Powerful features and a stylish new machine build offer users unmatched speed and cutting strength.

Overlap cutting (up to 10x) to cut accurately through thick materials
600gf of down force for more media options
Fastest cutting speed in its class at 1,485mm/s (58.5 in/s)
The industry's most powerful cutting motor for precise, dependable production
Includes storage trays, handles and basket levers with convenient media basket
Integrated media holder supports media rolls up to 88.5 lbs (40 kg)

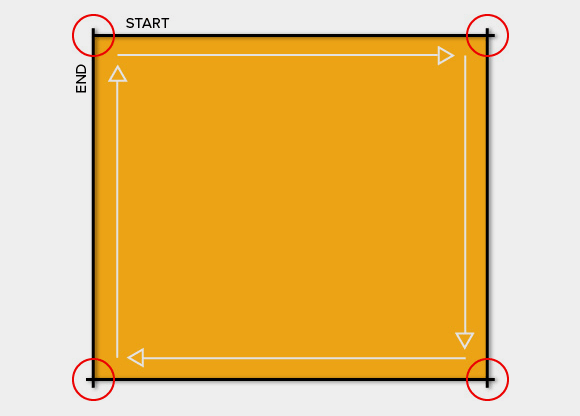

Overcut Function for Clean and Sharp Edges

GR cutters feature overcutting (tangential emulation) of .04 inches (1 mm) to ensure sharp edges. Overcutting corners is the process in which the blade travels past the cut line before the blade is lifted, turned and rotated toward the new cut direction in advance of the new cut line. The result is sharp, clean cuts with easy to weed corners.

We Have Your Back

The innovative features, outstanding versatility and incredible ease-of-use of the GR Series are just the beginning. With Roland, you get a product known for day-to-day reliability and long lasting durability. To back it up, GR series cutters come with an industry-best 3-Year Trouble-Free Warranty*.

* Requires product registration, only valid in US, Canada and Latin America regions

Roland Care Premium Service Contract

Customers who register their GR cutter are backed by a 3-Year Trouble-Free Warranty that can be upgraded to a 5-year warranty by purchasing a Roland Care Premium Service Contract. The premium contract also includes free technical phone support for the full 5- years under contract and free driver upgrades and updates.

Learn more
