Texart RT-640 Dye-Sublimation Printer Features

More dye-sublimation substrates means more opportunity.

Dye-sublimation is a beautifully simple and affordable method of customization. With a large format set-up that includes an RT-640 and a price comparable heat press, you can get the most bang-for-your-buck as far as graphics and product branding goes. Simply print your design onto transfer paper and heat press it onto the available product blanks and dye-sublimation substrates:

Polyester fabrics
ChromaLuxe metal panels
Ceramic items
Flip-Flops

Lycra and performance Fabrics
Sporting goods
Smart Device Cases
Carpet tiles

Texart RT-640 Dye-Sublimation Printer with 4-color or 8-color options

Cutting-edge ink with 4-color, 8-color and Fluorescents.

The Texart RT-640 can be configured as a 4-color or 8-color device. In 4-color (CMYK) mode, Texart dye-sublimation inks produce velvety blacks and sharp details. In 8-color (CMYK+LcLmOrVi and CMYK+OrViFpFy) mode, the addition of Orange, Violet, Fluorescent Pink and Fluorescent Yellow inks produce an increased color gamut with both delicate and intense hues. Fluorescent Pink and Yellow inks can be combined with process colors (CMY+Fp+Fy) to produce an array of vivid fluorescents and soft pastel shades.

An advanced, 8-channel print head features efficient ink coverage that lowers running costs. Containing 180 nozzles per channel, it produces seven different droplet sizes for smooth color and gradations when used with Texart SBL3 inks that are 15% less per liter than conventional inks.

The Roland Ink System uses 1-liter airtight sealed pouches. When in 4-color (CMYK) mode, the system outputs 2-liters per color and automatically switches to the backup ink pouch when the primary pouch runs out. This proprietary Roland Ink Switching System provides a no-mess, non-stop production that leaves you free to work on other things.

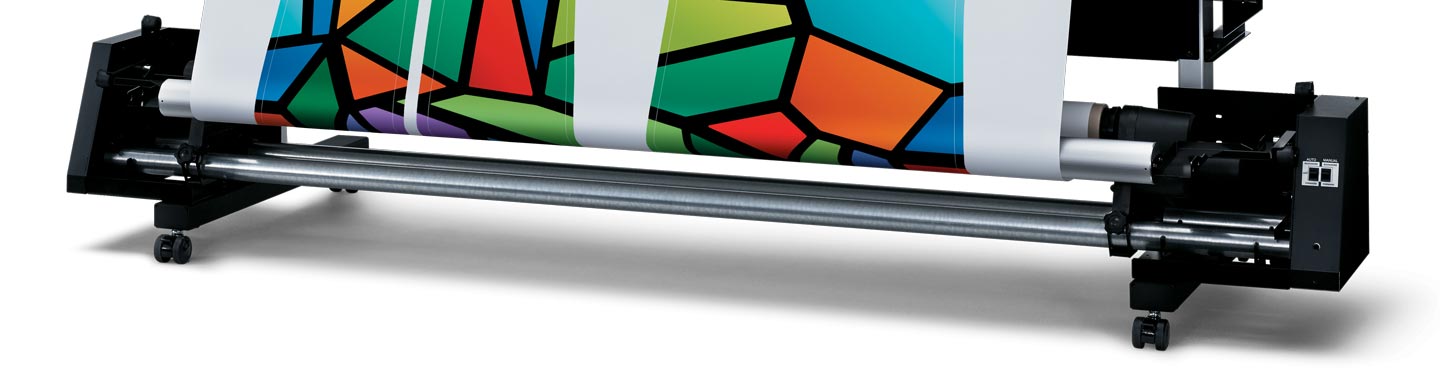

Relieve tension with a smooth take-up system.

The RT-640 includes a feed adjustment function that combines with a TU3 take-up attachment to ensure a stable and uninterrupted production even in high-speed modes. The TU3 take-up system includes a front-mounted roller and tension controlled take-up unit for smooth media feeding and tracking. Its main features include a roll media support that holds 110 lbs. (50kg), a dancer roller for effortless take-up, auto media release and auto media rewind, and a rotating shaft face to decrease resistance and ensure flawless feeding accuracy.

ErgoSoft is premium RIP software that's used extensively in the textile and dye-sublimation industry. ErgoSoft Roland Edition is specially designed for use with the RT-640 in 4-color and 8-color modes and features the following:

Work in print environments and print modes for the most common fabrics
Step & repeat and tiling features for advanced media saving and efficiency
Superior color management with color replacement and extensive Colorbooks swatches

Job cost calculation and other advanced production features
Available as ErgoSoft Roland Edition and ErgoSoft Roland Edition 2

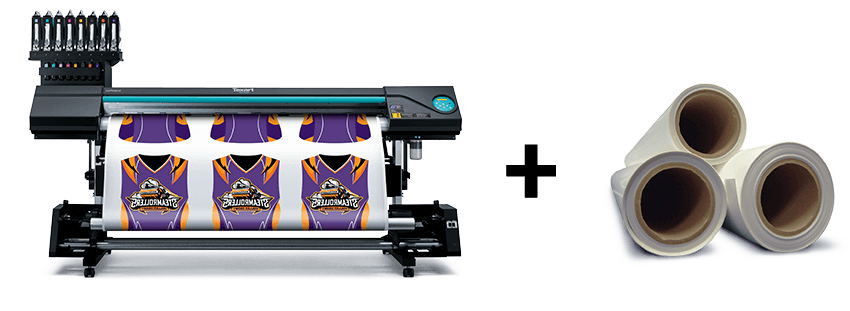

Texart RT-640 Dye-Sublimation Printer and Texart Transfer Paper

Combine RT-640 with Texart Transfer Paper for beautiful results.

Roland offers a premium transfer paper to meet the high-quality color and print demands of the RT-640. Specifically created for dye-sublimation and for use with the RT-640, Texart Transfer Paper is uniformly coated 95 gsm with excellent ink absorption, quick drying time and extremely high ink-release during sublimation. The combination of the RT-640 and Texart Transfer Paper saves money with decreased ink usage and produces high-resolution images, vibrant colors, and super-sharp text.

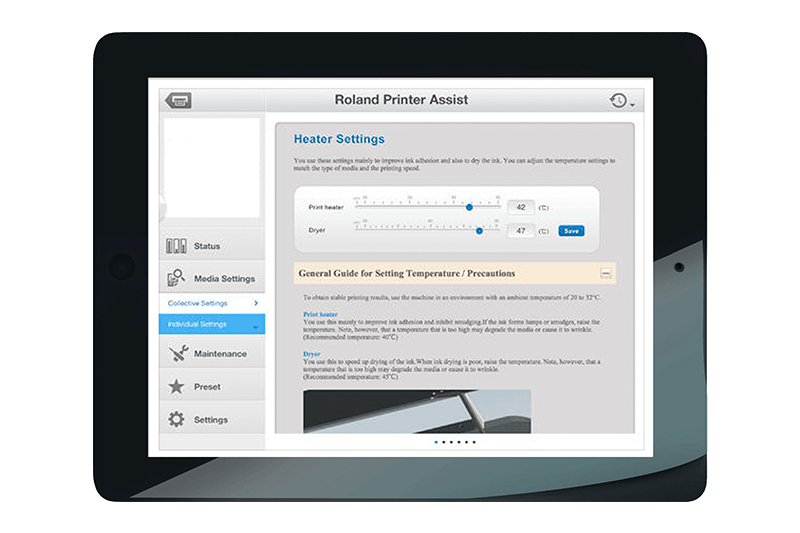

Remote controlled sublimation.

Manage your RT-640 dye-sublimation transfer printer remotely from your tablet or smart device. Free-to-download from the iTunes App Store, the Roland Printer Assist app enables users to manage production from virtually any location. The main features of this incredibly handy and convenient tool include checks and interactive documentation of the amount of ink remaining and waste bottle status, Roland Printer Assist notification of consumable part replacement, managing test printing and machine cleaning, and power on/off controls.

Two-year warranty and unmatched reliability.

Roland DG has earned a worldwide reputation for building reliable machines and backing them up with unmatched customer service and technical support. The RT-640 is supplied with a Two-Year Trouble-Free Warranty and proudly displays all international ISO certifications as your confirmation of superior quality.

*Registration within 60 days purchase and continuous exclusive use of Roland inks during the ﬁrst two years of ownership are required to qualify for the free second year of limited warranty coverage. See warranty page for details.
