EGX-350 Automatic Engraving Machines Features

Compact Engraving, Big Results

The EGX-350 Automatic Engraving Machine is a desktop engraving machine that performs like a production class engraver – handling ADA signage and day-to-day engraving jobs with ease, as well as providing unique personalization opportunities such as rhinestone apparel decoration. Here are just a few of the many revenue possibilities with the EGX-350:

Keys and nameplates
Wooden relief signs
Smart device covers
Decorated apparel

Hunting items
Trophies and plaques
Jewelry and personal items
Serial number plates

Beautiful Versatility

The EGX-350 is built for variety, engraving on plastic, acrylic, aluminum, stainless steel, brass artificial marble and wood. Unlike laser engravers and other automatic engraving machines, the EGX-350 preserves the original colors and textures of materials to provide a beautifully finished look.

Hassle-Free Operation

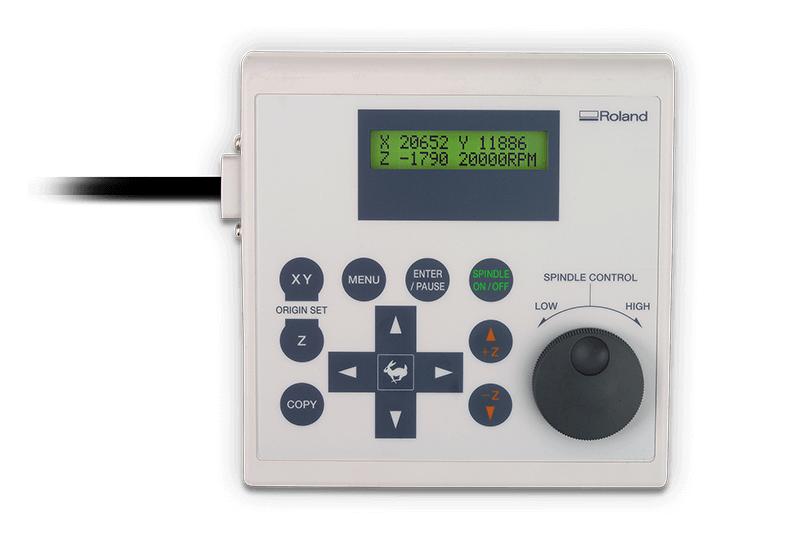

The EGX-350 features automatic surface detection that simplifies setup by determining the Z-axis starting point. This saves you an incredible amount of time and configuration hassles typically associated with engraving devices. The EGX-350 also features a hand-held control panel with a large LCD screen to let you quickly select engraving options such as spindle speed, without using a computer. Even cleanup is trouble-free with a one-touch vacuum adaptor.

Bundled Software Simplifies Engraving

Roland EngraveStudio

Roland EngraveStudio™ imports designs in AI and EPS formats, helping users with everything from simple jewelry scribing to complex relief wooden signs. With single stroke fonts and a special V-Carving mode, it produces quality results with a realistic hand-engraved look. EngraveStudio also enables on-screen design previews via an engraving simulation function. This saves you precious materials and time

R-Wear Studio

Quickly and easily create rhinestone templates for profitable decorated apparel and bag applications. R-Wear Studio includes a library of 500 hot-fix rhinestones and a job cost display, allowing you to calculate profits and manage rhinestone inventories. Learn More

Optional software

The EGX-350 is also compatible with industry-standard engraving programs such as EngraveLab v7.1 and FlexiEngrave 8.51.

bundle EGX-350 Automatic Engraving Machien with ADA signage kit

All-in-One ADA Signage Solution Available

Bundle your EGX-350 Automatic Engraving Machine with Roland’s ADA Signage Kit to produce tamper resistant signage that complies with all federal and state ADA (Americans With Disabilities Act) regulations. Complete with an Accent Signage Manual, Raster® Pen License Kit, cutters, engraving software, engravable materials, adhesive sheets and a self-contained chip removal system, the ADA Signage Kit provides an all-in-one ADA solution.

Hardware Accessories Available

Engrave like a pro, with these optional EGX-350 accessories.

T-Slot

Secures objects up to 12”(X) by 9”(Y) [305mm (X) by 230mm (Y)] for precision engraving.
Part number: ZTT-35.

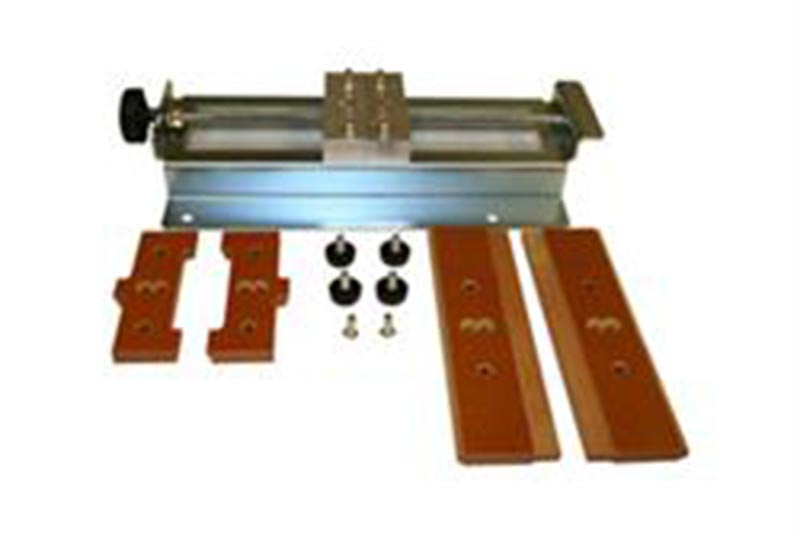

Center Vise

Holds objects up to 5.9” (X) by 5.8” (Y) by 1.3” (Z) [149mm (X) by 147mm (Y) x 33 (Z) mm].
Part number: ZV-23C.

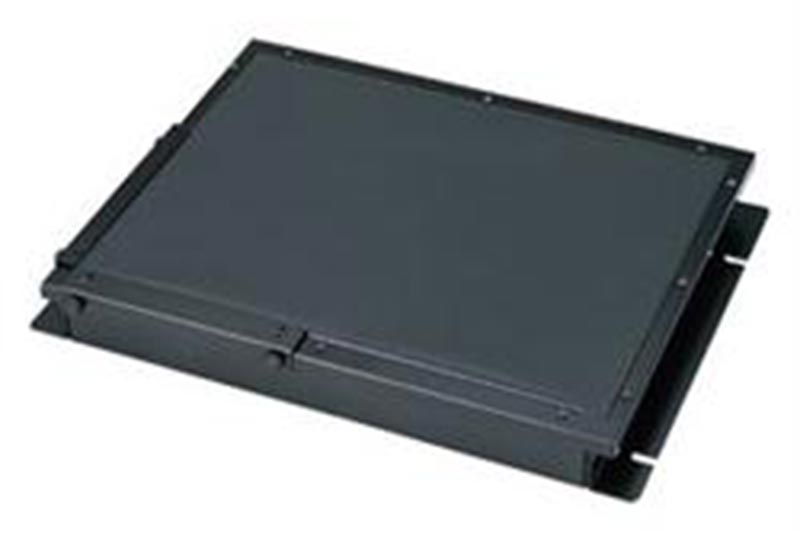

Vacuum Table

Keeps engraving material in place, eliminating the need for adhesive sheets. Table size is 12”(X) by 9”(Y) [305mm (X) by 230mm (Y)].
Part number: ZV-23A.

Reliability and Support Are Not Optional

As the world leader in desktop rotary engraving devices, Roland DG offers users unmatched product performance and reliability, backed by industry-leading service and support. The EGX-350 comes with a comprehensive One-Year Trouble-Free Warranty.

Roland DG’s international ISO certifications are a guarantee of exceptional quality.
