DWX-4W wet dental mill

DWX-4W Wet Dental Mill Specifications

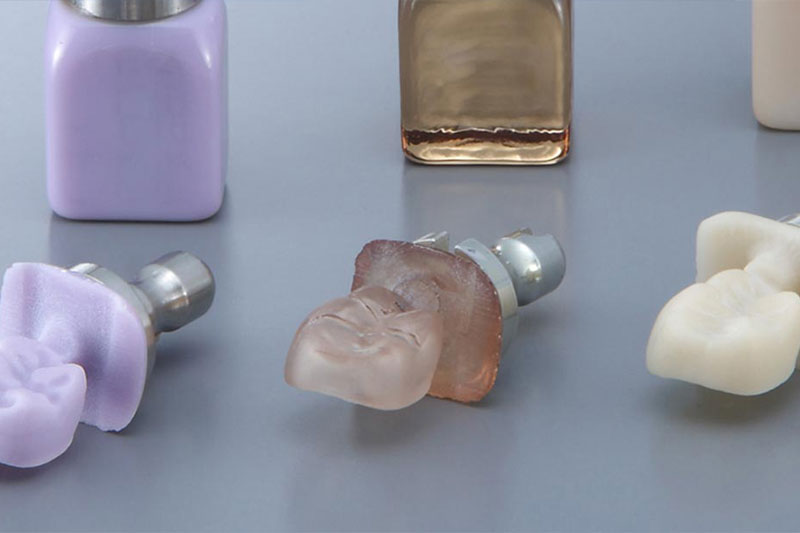

Cuttable material Glass ceramics, Composite resin
Loadable workpiece shape Width Maximum 40 mm (1.57 in)
Depth Maximum 20 mm (0.79 in)
Height Maximum 20 mm (0.79 in)
Operating speed 6 to 1,800 mm/min. (0.24 to 70.9 in./min.)
Spindle motor Jaeger high frequency spindle
Spindle speed 15,000 to 60,000 rpm
Rotary axis travel angle A axis ± 360°
Number of burs housed 4
Attachable bur Shank diameter 3 mm Dedicated milling bur for wet grinding
Compatible compressed air* Pressure 0.7 to 1.0MPA (101-145psi)
Air Capacity
 114L/min (30gal) or more
Tank Capacity
 33L (8.7gal) or more
Interface USB
Control command set RML-1, NC code
Power requirements AC 100 to 240 V ± 10%, 50/60 Hz , 1.9 A (overvoltage category II, IEC 60664-1)
Power consumption Approx. 200 W
Operating noise During operation 70 dB (A) or less (when not milling)
During standby 48 dB (A) or less
External dimensions Width x Depth x Height 480 x 538 x 599 mm (18.9 x 21.2 x 23.6 in.)
Weight 53 kg (116.8 lbs.)
Installation environment Indoor use, Altitude Up to 2,000 m (6,562 ft.)
Temperature 5 to 28 °C (41 to 82.4 F)
Relative humidity 35 to 80 % (no condensation)
Ambient pollution degree 2 (as specified by IEC 60664-1)
Short-term temporary overvoltage 1,440 V
Long-term temporary overvoltage 490 V
Included items Power cord, USB cable, Drain hoses, Detection pin, Dedicated milling burs, Automatic correction jig, Measuring cup, Hexagonal screwdriver, Hexagonal wrench, Mounting screws, Setup guide, Daily maintenance card, Roland Software Package CD, Spindle maintenance kit
System requirements for USB connection Operating system Windows® 7/8/8.1/10 (32 or 64 bit)
USB cable Use the included USB cable
OPTIONS
Collet Model #ZC-3JD Replacement spindle collet
Additive Model #ZAW-1000D Additive for coolant 1000 ml
Filter for coolant tank Model #ZF-CLD Replacement filter for coolant tank
Grinding bur Model #ZGB-125D r1.25mm milling bur for wet grinding
Grinding bur Model #ZGB-50D r0.50mm milling bur for wet grinding
Grinding bur Model #ZGB-25D r0.25mm milling bur for wet grinding

* Please contact your Roland DG dealer for the air appropriate compressor.
