Nipson Technology Macaw P55

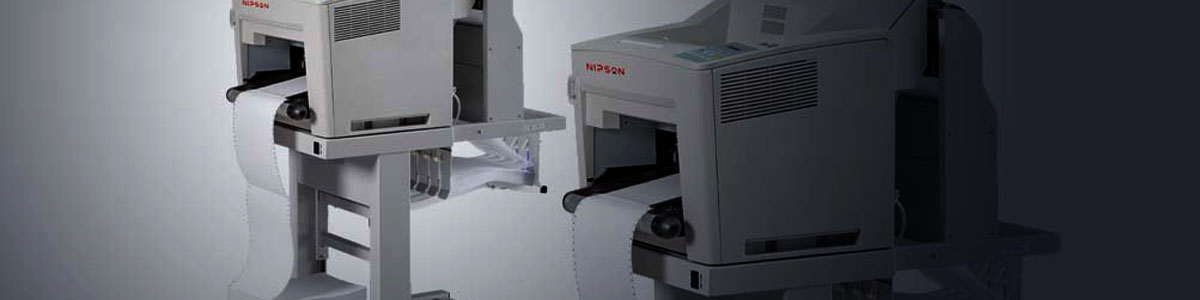

Macaw P55
CONTINUOUS FORM LASER PRINTER

The Macaw P55 is the ideal fanfold laser printer for complex data streams. Its high performance APPC Pentium Controller can process even the most complex data streams such as huge graphics, documents filled with barcodes or other variable data at full engine speed of 34 ppm. The Macaw P55 is a reliable solution for fanfold printing in laser quality on various print media. The optional paper stacker PS 45 can stack up to 3,000 pages unattended.

  • Performance: 34 pages per minute 1,700 lines per minute
  • 17 inch paper width
  • Processing of complex data streams at full engine speed
  • 10BaseT/100BaseTX Ethernet Interface
  • Two different fanfold papers alternatively accessible
  • Integrated paper cutter
  • Intelligent Paper Stacking without involvement of operator (PS 45)
  • 45 scalable fonts 13 resident barcodes
  • Emulation: HP Laser Jet 4 (PCL 5e)
    •

Interested?



Order Now!
Macaw P55
Print Speed: up to 34 pages per minute (A4 landscape)
up to 33 pages per minute (8,5“ form length)
up to 26 pages per minute (11“ form length)
up to 24 pages per minute (12“ form length)
up to 1,700 lines/minute at 6 lines/inch
Resolution: 300 x 300 dpi
Workload: 200,000 pages per month
Print Method: Electrophotographic, LED array, organic photoconductor, 2 component toner/developer, heat and pressure roller system with adjustable fusing temperature
Camera based Registration (OPA) Electrophotographic, LED array, organic photoconductor, 2 component toner/developer, heat and pressure roller system with adjustable fusing temperature
Control Panel: Four line LCD display (20 characters/line)
Keys: On Line, Menu, Select, Return
Diagnostics: Selftest, hexdump
Dimensions: 890 mm x 350 mm x 780 mm (W x H x D) (inclusive tractor cassettes)
Weight: 246 lbs. (112 kg) consumables included, without PS 45
Rated Voltage: 100 - 110 V (-10/+6%) AC, 50 - 60 Hz
110 - 120 V (-10/+6%) AC, 50 - 60 Hz
220 - 240 V (-10/+6%) AC, 50 - 60 Hz
Power Consumption: Operating power < 1,200 W average (< 1,650 W peak)
Operating current < 12 A average (< 15 A peak) 110 V
Standby < 400 W
Sleep mode < 45 W
Environmental Conditions: operating +15 to + 35°C, 30 to 50 % rel. humidity
storage - 10 to + 40°C, 95 % rel. humidity (40°C)
storage consumables - 10 to + 40°C, 95 % rel. humidity (40°C)
Sound Level: < 55 dB(A) operating
Agency Approvals: VDE / GS, CSA, CSA-US, CE, FCC
MICR Certification: PIRA Grade 1, APACS
