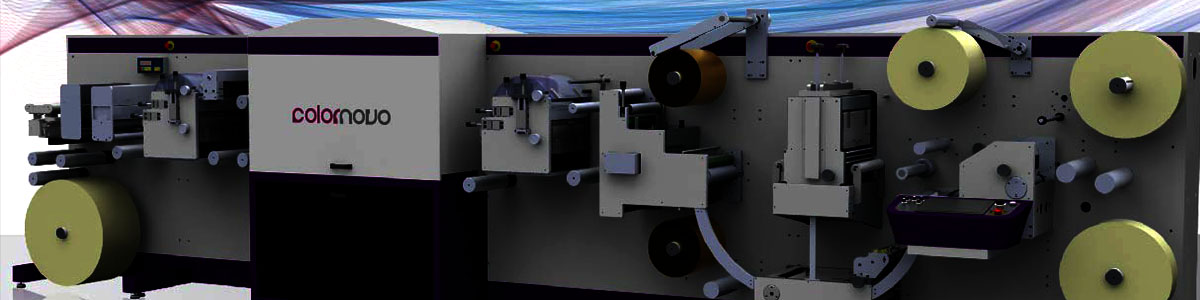

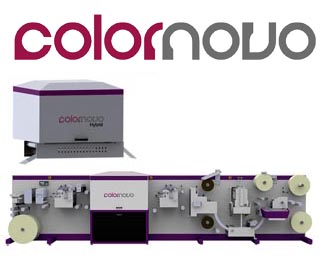

The label printing market is going through a transition period where run lengths are becoming shorter and shorter, margins are shrinking and fast turnaround time to market is creating huge pressure on label printers, here ColorNovo bridges the gap between end users, brand owners and the label printers enabling them to print on demand. It utilizes thePiezoDOD inkjet print head technology that enables to print high quality labels at 600 X 600 Dpi native resolution at speeds of up to 70 m/min and up to 330 mm of print widths, delivering the expectations of a label printer in terms of lowest total cost of ownership and fastest return on investments. Digital is the future, so is the Digital press, it comes with the power of printing short to medium runs very effectively and economically, additionally featuring great value of personalization, variable data and security printing in real time production at one go.
| Web Width | 330mm |
|---|---|
| Speed | Up to 70m/min |
| Substrate | 20-200um (label paper supported, other materials - perform test) |
| Color | CMYK + White (optional) |
| Print Width available | 110, 220, and 330 |
| Printing method | UV – Piezo DoD - Inkjet |
| Resolution | 600x600 DPI native, @ 4 level grey scale |
| File format | PDF, PDF/VT, TIFF, JPEG, BMP & other data base files |
| Workflow | Advanced color management &RIP solution |
| Ink Curing | Inter color UV LED pinning (optional), Full curing by UV LED / Arc Lamp |
| Unwinder Diameter | 700mm, core 76mm |
| Rewinder Diameter | Dual rewind Rewind 1 diameter(upper): 450 mm Rewind 2 diameter(lower): up to 700mm |
| Other Accessories | Flexo stations, cold foil, lamination, die cut with matrix rewind & back scoring, slitting assembly, web cleaner with antistatic, corona treater and web guide |
| Flexo 1 (optional, prior to print module) | Pre digital Flexo for high coverage color, spot color, primer with UV curing (registered or non-registered) |
| Flexo 2 (post print module) | Post Digital registered Flexo for spot color, spot varnish or other post digital press with UV curing |
| Die Cutting | Semi/Full rotary (2”-25”) |
| Optimal temperature range | 20-22 C (68-72 degree F) |
| Maximum temperature range | 20-22 C (68-72 degree F) |
| Ink storage | 36dB/32dB (Normal/Eco. Mode) |
| 20-22 C (68-77 degree F) | AC 100-240V, 50/60Hz |
| Optimum humidity range | 40-60% |
