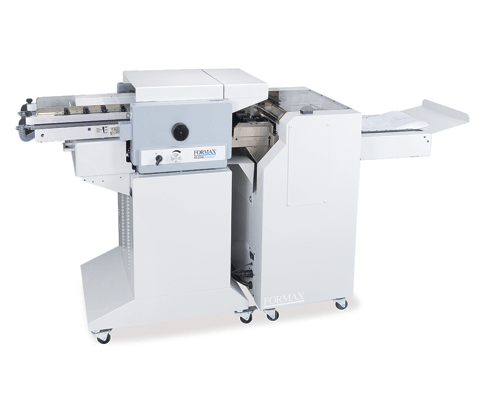

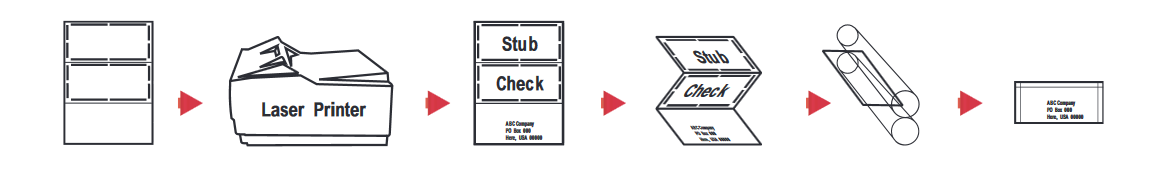

The AutoSeal® FD 2096 uses patented pressure seal technology to efficiently process cut-sheet pressure seal forms in a mid-volume production environment, at speeds of up to 30,000 forms per hour. Its bottom-suction air-feed system provides accurate feeding and allows for continual loading of forms, dramatically reducing down time.

Set-up is quick and easy with rugged metal fold pates, clearly marked with both standard and metric markings, and fold rollers made of heavy-duty polyurethane foam, which eliminates the need for gap adjustments. The sealing unit utilizes a 17” ball transport deck for a smooth, reliable transition from the fold rollers into the sealer, and requires no adjustments.

User-friendly features include sound-dampening fold plate covers for quieter operation, a 6-digit resettable LED counter, rugged locking casters, and a high-capacity 24” output conveyor which is collapsible for convenient storage when not in use.

Heavy duty construction combines with quick set-up and operation to make the FD 2096 a powerful solution for processing mid-volume pressure-seal mailings.

Order Now!
  • Variable Speed: Large jobs are processed quickly at speeds of up to 30,000 forms per hour
  • Top-Loading Bottom Air Feed: The air feed deck accurately feeds forms, while allowing for continuous top feeding, with no need to stop and reload
  • Resettable Counter: 6-digit LED counter provides maximum audit control
  • Noise Reduction: Covers and fold plates are insulated to reduce operating noise
  • Rugged Construction: Designed for mid-volume production environments

  • Heavy Duty Fold Rollers: Polyurethane foam rollers eliminate the need for gap ajustments
  • Rugged Fold Plates: Metal fold plates feature metric and standard scales for easy fold setting
  • Air-Feed Pump: Fully enclosed
  • Rotating Air Suction Drum: Located on the feed table, separates sheets for accurate feeding
  • User-Friendly Adjustments: Fold plates feature a 7-point quick-release fold stop, skew adjusment and fine tuning knob

  • Pressure Rollers: Precision ground clutching four-roller system
  • Ball Transport Deck: Adjustable 17” ball-deck provides smooth, efficient transport from the folder into the sealer
  • Fault Detection: Infrared sensor located at the infeed of the sealer detects any faults and sends a signal to stop the folding unit
  • Plexi-Cover: Hinged with a handle to allow quick access to the sealing area. Includes safety interlock to stop the system when opened.
  • Static Eliminator Brush: Located on the exit of the sealer to reduce static electricity and assist in the neat, sequential stacking of forms onto the conveyor

  • 24” Outfeed Conveyor: Includes speed control and run-out switch for easy unloading of processed forms
  • Adjustable Stacking Wheels: Help to keep processed forms in a neat, sequential order
