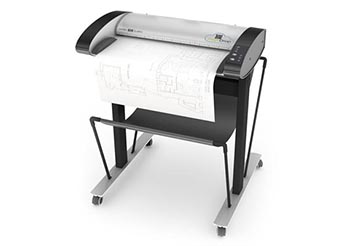

Contex IQ Quattro 2490

IQ Quattro 2490
A1/D-Size Scanner

IQ Quattro 2490 scanners are ideal for technical documents. Share through cloud solution.

Faster: Spend less time scanning and instead focus on what matters to you. Scan small and large documents up to A1/D-size.
Smarter: IQ Quattro is networked with your entire workgroup and Cloud enabled so anybody in your project team can use it from their smartphone. IQ Quattro is networked with your entire workgroup and Cloud enabled so anybody in your project team can use it from their smartphone.
Better: Shadows and unwanted back- ground are suppressed leaving you with crisp, sharp and natural scans – ready to be used in your continued workflow.
Unique technology: With Contex CleanScan CIS modules, superfast Ethernet and award-winning Nextimage software, Contex IQ Quattro is the leading scanner for technical projects.
The IQ Quattro scanner is the 4th generation CIS scanner from Contex. It is available 24 and 44 inches, and contains proven technology from our CCD range and CIS technology refined to match our customers requirements for high quality, speed and ease of use. IQ Quattro scanners are ideal for project groups. Scan documents and enhance your files in AutoCAD.

Up to A1/D-size originals
Return guides for easy document handling, by returning documents to the user with rewind through scanner. Return guides are detachable. Magnetic document guides can be used to support long documents and makes precise document loading easier. Designed for optimal ergonomic working environment. Height adjustable stand in 3 positions.

Contex ClearScan - provides leading quality
With new methods for diffusion you you will get the most natural light in your scans.

More power in every pixel
Contex CleanScan CIS modules with unmatched image quality combined with the award winning Nextimage Software.

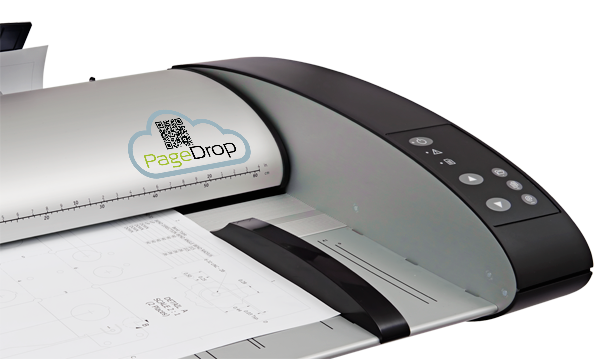

PageDrop Enabled
Any PageDrop enabled Contex scanner can send documents directly to your preferred destinations. PageDrop does not require a PC. Instead it simply utilizes your smart phone or tablet to control the process. Load the document, scan the QR code, and send the document directly to your desired destination.

Interested?

Order Now!
Key Features:
  • Fast, crisp and sharp scans of regular and oversized documents
  • Fit for multi-site network
  • Scan speed up to 14 in / sec in color with Sigma and CFR
  • CleanScan - provides leading image quality
  • Gigabit Network
  • Magnetic document guides
  • Using only 0.5W in standby
  • Recovery from standby in just 1 second by simply loading the document
  • Cloud Enabled
    •
Contex IQ Quattro 2490
Specifications
Optical Resolution 1200 dpi
Maximum Resolution 9600 dpi
Scan Area 24” (610 mm)
Maximum Image Size 1) 26.6 inch (676 mm)
Scanning Speed (sec.):
   200 dpi RGB Color 14 inch/sec
   200 dpi Grayscale / Monochrome 14 inch/sec
Total number of Pixels 32400 pixels
CIS Technology 2) Contex CleanScan
Contex SIGMA 3) •
Contex CFR 4) •
Accuracy 0.1% +/- 1 pixel
Data Capture (color/mono) 48-bit / 16-bit
Full 48-bit Data Workflow Yes
Color Space Adobe RGB / Device RGB / RAW RGB / sRGB
USB and Gigabit Ethernet with xDTR2 •
Network workflow Pull / Push
Cloud enabled •
SmartShare •
ALE •
AccuColor •
Energy Star certified •
Software 5) AutoCAD® , MicrostationTM, ArcGIStm and all other CAD, GIS and other image editing / storage applications
Fileformats 6) TIF, JPG, PDF, PDF/A, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended(JPX), TIF-G3, TIF-G4, others
Device Drivers 32 and 64-bit Windows 10, 8, 7 and Vista
Nextimage TWAIN 32-bit TWAIN application driver included for use with EDM and other imaging software
Power Requirements 100 - 240V, 60/50Hz, 23W
Power Consumption
(Ready / Sleep Mode / Scanning)		 10W / 0.5W / 18W - ENERGY STAR Certified
Weight and Dimensions 35.5 Ibs. (16.1 kg) / 32.4 x 18.9 x 6.3 inches (82.4 x 48.0 x 16.1 cm)
Certifications/compliance CE, cUL, Customs Union, VCCI, FCC Class A, RohS and ENERGY STAR Certified
Country of Origin Designed and engineered in Denmark, manufactured in China
