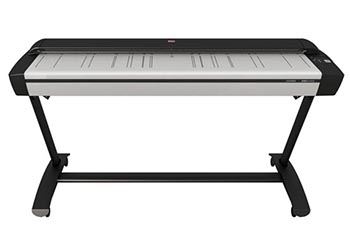

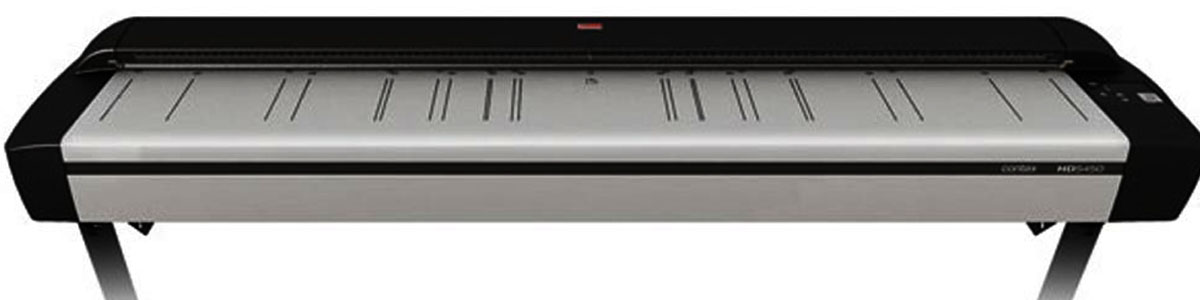

Contex HD 5450 Large Format Scanner
Proven technology for large digital documents
With uncompromising image quality standards, the Contex HD5450 scanner is designed for high-volume productivity for businesses-critical imaging tasks. Whether you are a private business, government or print-for-pay, an HD5450 is the right solution for improved efficiency and productivity.

Artwork, maps and other color- and detail-rich documents are reproduced to perfection, without any document length limit. You don’t have to scan the material in several parts and then stitch the images together afterwards.

You have a consecutive processing of any number of scans, and software settings you can personalize to ensure the same scan, copy and color settings every time.

Proven technology
A combination of 48-bit color, 4-channel CCD technology, full-size professional camera lenses and advanced image data processing algorithms creates a superior image quality. With image processing performed inside the scanner, your PC is free to run software applications more efficiently.

The Contex HD5450 wide format scanner is fast and steady with up to 12 inch/second scanning speeds. Truly a workhorse that can handle very large originals with speed and ease. The HD5450 gives you a great performance and a high return on your investment.
Order Now!
Various media and thickness

Do you have thick, mounted or other sensitive or specialized documents? No problem. Automatic Thickness Adjustment Control (ATAC) technology lets you scan documents up to 0.6“ (15 mm) thick and monitors pressure on the document surface.

Key Features:
  • 54-inch ultra-wide design captures oversized documents easily
  • 48-bit color and 16-bit grayscale image data capture from 4-channel CCD technology with lenses from Fujifilm
  • Exceptional ultra wide productivity, scanning up to 258 Arch E-size color documents per hour (214 A0/hour)
  • Scan-to-Net function for scanner sharing over a network, and sending files to remote PC’s
  • All Wheel Drive (AWD), a precision paper feed tracking system, ensures a perfectly straight scanning path and distortion-free scans
  • SnapScan technology: Scan - Enhance - Save
Contex HD 5450
Scanning Speed1 (inch/sec.): Scanner speed while scanning 36-inch wide document.
400 dpi (Turbo) RGB Color 3.0
400 dpi (Turbo) Index Color 3.0
400 dpi (Turbo) Grayscale/Monochrome 12.0
Working height2 36.0 / 37.0 / 38.0 inch (914 / 940 / 965 mm)
Productivity1 (documents/hour): Batch scanning for 60 minutes. Includes paper load and eject time. Measured in completed scans.
Arch E-size, RGB Color, 200dpi 258
Arch E-size, Monochrome, 200dpi 633
A0-size, RGB Color, 200dpi 214
A0-size, Monochrome, 200dpi 551
Scanner
Maximum Scan Width 54 inch (1372 mm)
Maximum Media Width 56 inch (1422 mm)
Optical Resolution 508 dpi
Maximum Resolution 9600dpi
Maximum Media Thickness 0.6in. (15mm)
Accuracy 0.1% +/- 1 pixel
Data Capture (color/mono) 48-bit/16-bit
Color Space sRGB
Interface USB with xDTR
Network workflow Pull / Push
Software3 AutoCAD(R), MicrostationTM, ArcGIStm and all other CAD, GIS and other image editing / storage applications
Fileformats4 TIF, JPG, PDF, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended(JPX), TIF-G3, TIF-G4, others
Device Drivers 64-bit Windows OS
Nextimage, TWAIN 64-bit TWAIN application driver included for use with EDM and other imaging softwaremso-ansi-language:
Power requirements 100 - 240V, 60/50Hz, 180w
Weight & Dimensions LxWxH 79kg (174lbs)/ 67 x 19 x 7 inches (1701 x 482 x 178 mm)
Certifications/compliance RoHS, cUL, CE, GOST-R, VCCI, Ukr/compliance
