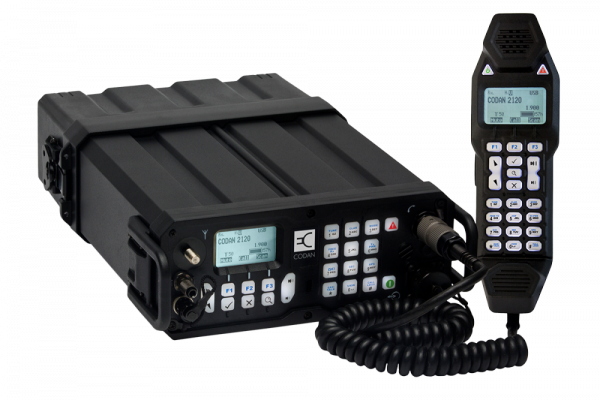

The Patrol 2110 Manpack is a reliable, rugged and secure solution for your portable long distance HF voice and data communications.

With second-generation Digital Voice and rugged smart handset, you have the confidence to communicate anywhere and anytime without the need for existing infrastructure. The Codan Patrol 2110 manpack is extremely light and delivers the lowest power consumption of any available manpack radio, meaning you can operate continuously on a single charge for up to 65 hours.


Control Is In Your Hands

Patrol’s rugged smart handset enables remote operation of the Manpack, with all the capability of the front panel now in the palm of your hand. Designed to meet our customer’s ergonomic and functionality requirements, the smart handset provides optimal operational efficiency and effectiveness.

Control Is In Your Hands

Patrol’s rugged smart handset enables remote operation of the Manpack, with all the capability of the front panel now in the palm of your hand. Designed to meet our customer’s ergonomic and functionality requirements, the smart handset provides optimal operational efficiency and effectiveness.

Rugged and Secure

The Patrol 2110 Manpack is a reliable, rugged and secure solution for your portable long-range high frequency (HF) voice and data communications. With second-generation Digital Voice and 3G ALE, you have the confidence to communicate quickly and reliably without the need for existing infrastructure.

Robust and Reliable Comms

The Patrol 2110 has AES-256 or CES-128 encryption options ensure sensitive information can be communicated with confidence, it also has an option for internal Frequency Hopping to prevent third party interference and monitoring of classified communications. Codan’s 3G ALE option for Patrol enables robust and efficient on-air linking, providing capabilities for quick and reliable voice and data communications, as well as enhanced GPS tracking.

QUICKER AND MORE ROBUST

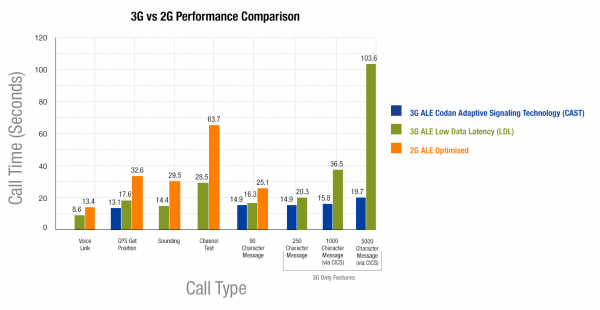

With 3G ALE, the Patrol 2110 Manpack is capable of up to 250 character messaging via the user interface and 5,000 character message via CICS. Along with quicker voice linking, quicker GPS positioning and quicker channel testing using smarter and highly advanced waveforms, 3G ALE will communicate in the most challenging of environments. Now compatible with SprintChat and SprintNet.

DIGITAL VOICE

The Patrol 2110’s second generation Digital Voice capability delivers clearly intelligible speech no matter the conditions, ensuring you’re always heard, loud and clear.



LONGER LIFE, LIGHTWEIGHT AND TOUGH

The Patrol 2110 eliminates the need to carry heavy spare batteries and operates continuously for up to 65 hours. Weighing only 2.9 kg, Patrol is 1 kg lighter than competitors and fully complies with MIL-STD-810F standards.


INTEGRATED GPS

With a unique one-button emergency facility, no-go proximity warning messages and encrypted position information, the Patrol 2110’s internal GPS gives you an eagle-eye view of your HF network.


ADVANCED ALE

The Patrol 2110 supports standards FED-STD-1045, MIL-STD-188-141B, and 3G ALE STANAG 4538 with advanced capabilities for voice, message, GPS tracking and radio status for simple and reliable communication.


INTERNAL DATA MODEM

With an optional fully integrated high-speed data modem, the Patrol 2110 is capable of data-rates of up to 9600 bps, secured with AES-256 bit encryption to ensure your information remains confidential.

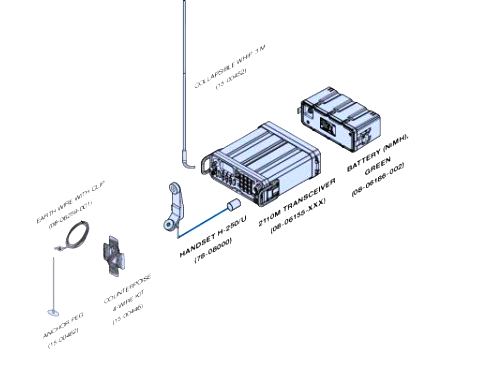

25W Portable Solution

The Patrol 2110 Vehicular HF solution provides up to 50 hours of use via the 13Ah rechargeable lightweight battery. The 3m collapsible whip antenna, coupled with the internal Patrol 2110 Antenna Tuner provides continuous coverage from 1.6 to 30 MHz. Maximum RF power output for this solution is 25 W. Additional transceiver options and accessories can be selected to expand the capabilities of the solution.








25W Vehicular Solution

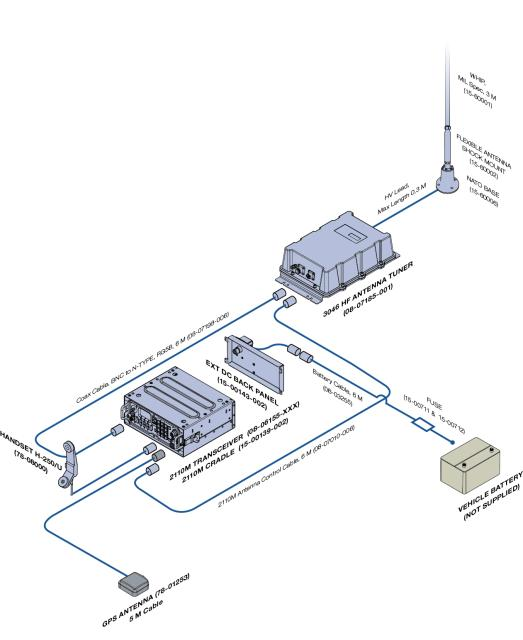

The Patrol 2110 Vehicular HF solution has power provided by the 12 V DC vehicle battery and can run from a 24 V DC supply with the addition of an optional 24/12 V voltage converter. The antenna system comprises the 3046 automatic tuner coupled with a 3m composite whip antenna mounted to a NATO hole pattern compatible antenna base, providing continuous coverage from 2 to 30 MHz. Maximum RF power output for this solution is 25 W. The Patrol 2110 transceiver unit can be quickly and easily removed from the vehicle mounting cradle for “jerk and run” operational scenarios. Optional shock mounts are available for both the transceiver vehicle mounting cradle and 3046 HF Antenna Tuner. These provide added protection when equipment is installed in environments that may sustain extreme levels of shock/vibration.
SPECS
Frequency range Transmit: 1.6 to 30 MHz, 10 Hz steps
Receive: 250 to 30 MHz, 10 Hz steps
Channel capacity 600 channels, 20 networks with MIL-STD-188-141B ALE option or 3G ALE option
Scanning Configurable up to 8 channels per second
Frequency stability ±1.5 ppm (–30 to +60°C)
Power source 12 V DC (10.8 to 15 V operational)
Modes Voice/Data, USB/LSB (J3E), AM (H3E), AFSK (J2B), CW (J2A)
Linking and Data 3G ALE (STANAG 4538) including FLSU, HDL, LDL, CAST (Codan Adaptive Signalling Technology)
MIL-STD-188-141B ALE
MIL_STD_188-110A/B
STANAG 4539, 75 to 9600 bit/s
Vocoder MELPe (1200/2400 bit/s); TWELP (600/1200/2400 bit/s)
Operating temperature range –40 to +70°C, full spec –30 to +60°C
Size Transceiver: 245mm W x 250mm D x 92mm H
With battery: 245mm W x 350mm D x 92mm H
Smart handset: 70mm W x 210 mm L x 72 mm H
Weight Transceiver: 2.9 kg (5.0 kg with 8 Ah NiMH battery)
Smart handset: 0.3kg
Environmental Per MIL-STD-810F including shock, vibration, humidity, immersion (1 hr at 1m), altitude, fungus, salt fog, sand and dust, blowing dust, and rough handling
Cooling Convection from case
EMC Complies with MIL-STD-461
Transceiver conformance Exceeds or meets requirements of AS/NZS 4770:2003, CE, NTIA and FCC Per MIL-STD-188-141B (required for ALE)
Interfaces USB (full opto-isolation) or RS232
Approximate battery life Approx. 50 hr (13 Ah NiMH), 1:9 Tx:Rx Approx. 65 hr (17 Ah Li-FePO4), 1:9 Tx:Rx
RF input/output impedance Whip/long wire antenna via internal Automatic Antenna Tuner, or 50 Ω nominal
Transmitter specifications Power output: 25 W PEP (High)/5 W PEP (Low) selectable
Duty cycle: 50% with over temperature protection
Audio bandwidth: 300 to 2700 Hz (standard filter), 300 to 3000 Hz (optional 2.7 kHz BW filter)
Receiver specifications Operating current: 120 mA typical (speaker muted)
Sensitivity: 0.14 uV for 10 dB SINAD
Image & IF rejection: 85 dB
Spurious response: ≥70 dB
Mute: Syllabic Voice Detect
Audio output: Waterproof internal speaker; 0.5 W into 8 , 10% THD
External speaker on GPIO connector; 1 W into 4 , 10% THD
Antenna tuner Tuning: 2.5 s typical first tune (fully automatic), 50 ms for memory recall Last tune stored for 100 frequencies
Encryption CES-128: 97 x programmable 16-digit keys, 4-digit PIN AES-256: 256 x programmable 256-bit keys
BENEFITS
Superior voice quality Codan’s second generation Digital Voice technology provides a quantum leap in HF voice communications, providing voice quality similar to that experienced with cellular phones.
Smart rugged handset Custom designed to suit operational scenarios, the Patrol smart handset is manufactured from high-grade plastic polymers to meet users requirements for functionality and aesthetics.
Built to last Codan Patrol 2110 manpacks are the most rugged radios we’ve ever built and comply with the toughest environmental standards including MIL-STD-810F. The radio and battery compartment are completely waterproofed and can be fully immersed.
Worldwide standards The Patrol 2110 manpack complies with a large number of international standards. These include CE and FCC radio type approvals, MIL-STD-810F environmental standards, FED-STD-1045 ALE, and MIL-STD-188-141B ALE.
Long battery life Codan’s Patrol 2110 manpack delivers the lowest current consumption available so you can operate continuously on a single charge for several days, up to 65 hours, without the need to lug around extra batteries.
Intelligent battery management Our intelligent Battery Management System monitors and displays the battery capacity and condition, and also protects the battery from being overcharged.
Communications made easy The Patrol 2110 radios share a common friendly user-interface with our innovative NGT series, so you can minimise training time and expenses. They operate seamlessly with our NGT series, plus other commercial and military grade radios.
