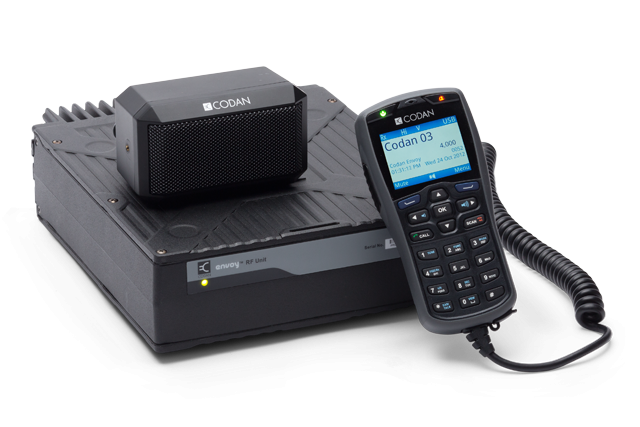

Codan Envoy Smart Radio - LMR and HF Radio

Codan’s Envoy HF Radio delivers dependable, clear, trouble free voice, instant messaging and data communications, without dependence on existing infrastructure. Now with Codan’s second-generation Digital Voice technology, Envoy provides outstanding voice clarity in conditions where competing HF radios fail to deliver.

With digital voice, software upgradability, IP capability, multi-language support and an embedded software modem — the Codan Envoy sets a new standard for HF radio.

The Envoy secure interoperability feature enables you to configure the radio to automatically select the correct secure attributes when operating within networks that have disparate voice and/or data secure states. The Envoy also allows for a range of language options, including; English, Spanish, Russian, Chinese, French, Arabic, Dari, Farsi, Pashto and Portuguese.

Envoy’s high-resolution colour display with an intuitive icon-based menu makes using your HF radio as easy as navigating your smart phone. The handset features a backlit keyset, a one-touch emergency button and can be easily updated to a different language. The Envoy makes using your HF radio easier than ever.



3G ALE Waveform

Envoy can now be upgraded with advanced 3G ALE providing faster linking and more flexible data capabilities than with existing 2G solutions. When coupled with Codan’s easy to use Sprint data applications, 3G ALE enabled Envoy networks can support secure peer-to-peer email, file transfer, and chat data, communications and email and phone SMS gateway services.


HF Secure Interoperability

The Codan Virtual Control Point allows you to operate a Codan Envoy HF radio via any Windows 7, 8 and 10 powered computer, and providing greater convenience for users who would like to operate their Envoy radio from a PC.


Digital Voice

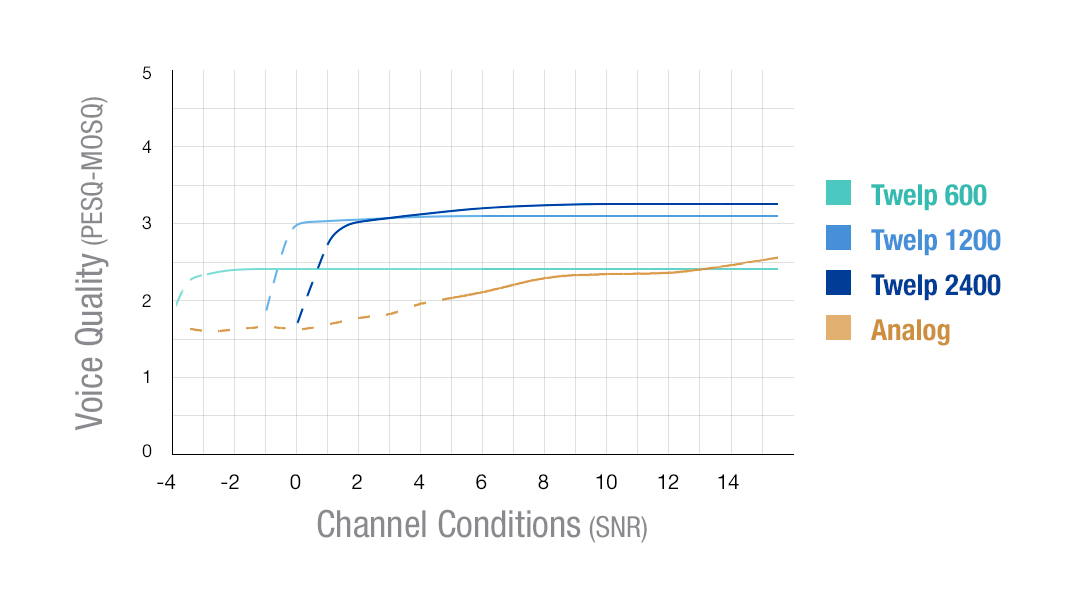

Envoy's optional digital voice capability provides clear and intelligible speech no matter the conditions, ensuring you're always heard, loud and clear.


Long Range Digital Radio

LRDR represents the evolution of HF long distance communications from Analogue based to Digital for voice, messaging and data communications medium utilising the HF spectrum to provide a voice quality and data transmission experience similar to cellular and digital land mobile communications, while also providing the capability for encryption and integrated with standard capabilities such as Seicall and ALE call systems.


Encryption

The Envoy is supported with a wide range of voice and data encryption options including; AES-256, CES-128 and CIVS. KMS software can be used to generate secure key plans, alongside KFS or USB memory stick to key fill the radio.


Smart Interface

With an icon-based full-colour user interface, USB SmartLoader, and intuitive programming, Envoy is easy to operate and minimises the need for training.

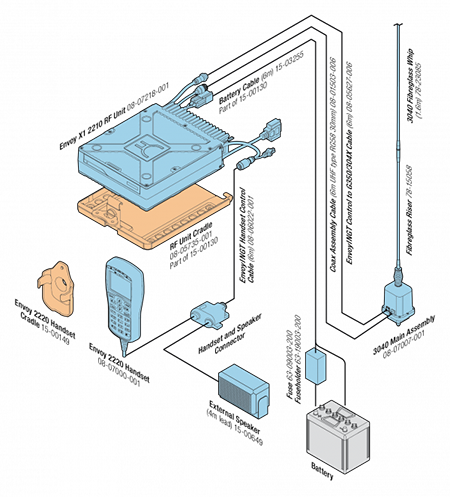

Envoy Mobile Solution

Envoy can now be upgraded with advanced 3G ALE providing faster linking and more flexible data capabilities than with existing 2G solutions. When coupled with Codan’s easy to use Sprint data applications, 3G ALE enabled Envoy networks can support secure peer-to-peer email, file transfer, and chat data, communications and email and phone SMS gateway services.

Envoy Base Station Solution

The Envoy base station solution consists of an Envoy radio (RFU), desk console, 3020 power supply, 411 Terminated Folded Dipole broadband antenna and cables. The Envoy is the only HF base system with a purpose-built smart desktop console that provides maximum operational flexibility and full remote control capability of all HF radios on your network. Quick to setup, an Envoy base station solution provide provides a rapid link into your HF communications network.
GENERAL
Channels and Scanning Up to 1000 simplex or semi-duplex. Up to 20 scan groups. Simultaneous scanning for Selcall (ALE/CCIR) and voice. Dwell time 125 ms to 9.9 s, adjustable
Contacts List Up to 500 entries
SDR processing architecture DSP: 456 MHz, 32-bit
FPGA: 500,000 gate
MCU: ARM9, 300 MHz 32-bit
Interfaces USB (via Handset or Console)
Serial RS232 (supports NMEA-0183 GPS)
Ethernet (TCP/IP, supports remote control)
Auxiliary GPIO (audio in/out, PTT, RS232) on Envoy™ X2 model
Audio response Less than 3 dB variation from 300 Hz to 3 kHz (with optional 2.7 kHz filter)
Compliance CE, FCC, IC, AS/NZS 4770:2000, AS/NZS4355:2006
Temperature range and Humidity –30 to +60°C; 95% RH maximum, non-condensing
RF
Frequency range Transmit: 1.6 to 30 MHz
Receive: 250 kHz to 30 MHz
Frequency Stability: ±0.3 ppm from –30°C to +60°C
Modes Single Sideband USB, LSB (J3E), AM (H3E), CW (J2A), AFSK (J2B), FSK (F1B), Software Defined
Output power 125 W PEP ±1 dB (two-tone or voice), user-programmable in 1 W steps (low/medium/high)
Duty cycle 100% Voice/Data with optional fan
RF output impedance 50 Ω
Filter bandwidths 2.4 kHz standard (500 Hz, 2.7 kHz, and 3 kHz optional)
Transmitter specifications Spurious and harmonic emissions: Better than ‹69 dB below PEP
Intermodulation products: 40 dB below PEP
Carrier suppression: Better than 65 dB below PEP
Sideband suppression: 70 dB below PEP
Switching speed ‹25 ms (Tx:Rx or Rx:Tx)
ELECTRICAL
Operating range 10.8 to 15 V DC (12 V Nominal)
Supply current Rx: 500 mA (backlight min, audio muted)
Tx: Two-tone 12.5 A typical, average speech 8 A
Protection Over-voltage/under-voltage/over-temperature/reverse polarity
MECHANICAL
Size 2210 RF Unit: 210 x 270 x 65 mm (8.3 x 10.6 x 2.6 in)
2220/1 Handset: 75 x 32 x 151 mm (3.0 x 1.3 x 5.9 in)
2230 Console: 190 x 228 x 79 mm (7.5 x 9.0 x 3.1 in)
Weight 2210 RF Unit: 2.8 kg (6.2 lb)
2220/1 Handset: 0.3 kg (0.7 oz)
2230 Console: 1.1 kg (2.4 lb)
Paint finish 2210 RF Unit: Powder-coated matt black
Ingress Protection IP43, MIL-STD-810G method 510.5
Environmental standards MIL-STD-810G (Dust, Shock, Vibration, Humidity, Fungus, Altitude)
