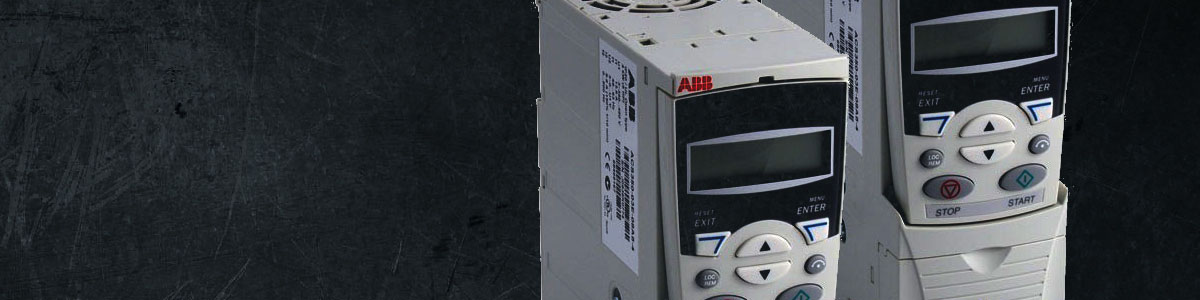

ABB ACS350 general machinery drives are designed for the OEM machine building sector, systems integrators and end users in sectors such as food processing, material handling, textiles, printing, rubber and plastics. The small size makes it easy for panel builders and OEM's to design smaller control panels or increase the number of drives in an existing panel. Features include FlashDrop technology which allows users to upload parameters without powering up the drive. thus making it possible to pre-configure drives before delivery.
| Input configuration |
24-pulse diode rectifier or active front end |
| Input voltage |
1850 V, 1930 V, 24-pulse diode rectifier 4.16 kV, 6.0 kV, 6.6 kV, 6.9 kV, active front end |
| Input voltage variation |
± 10 %, 4.16 kV, 6.0 kV, 6.6 kV -10% to +5%, 6.9 kV |
| Input frequency |
50 / 60 Hz |
| Input frequency variation |
< 5 % |
| Input power factor |
Diode rectifier: > 0.95 Active rectifier: 1 |
| Input harmonics |
Complies with IEC 61000, IEEE 519, GB/T 14549 |
| Auxiliary voltage |
110 V DC, 220 V DC 110 V, 120 V, 230 V, 50 / 60 Hz 380 V, 400 V, 415 V, 440 V, 460 V, 480 V, 575 V, 600 V, 50/60 Hz, 3 phase |
| Output power |
250 – 3680 kW |
| Output voltage |
4.16 – 6.9 kV |
| Output frequency |
0 – 75 Hz |
| Motor type |
Induction |
| Efficiency of converter |
97.5 % |
| Motor harmonics |
< 5 % THDi, compatible to standard DOL motors |
| Enclosure | Standard: IP 21, NEMA 1 Optional: IP 42 |
| Cable entry |
Top / bottom |
| Altitude | 2000 m a.s.l. |
| Ambient air temperature |
+1 °C to +40 °C (optional +50 °C) |
| External cooling water temperature | n.a. |
| Noise | < 85 dB(A) |
| Cooling type | Air |
| Standards | EN, IEC, CE, NEMA, IEEE, UL |
