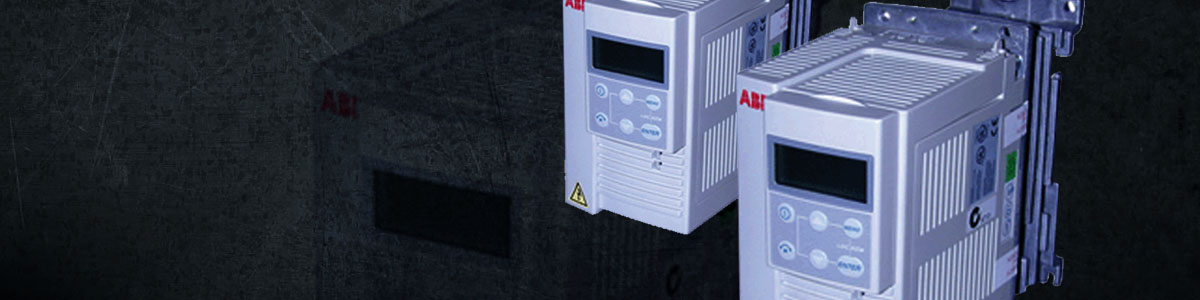

ABB ACS140

ACS140

For 0.12-2.2KW squirrel-cage motor's speed and torque control. As one of Comp-AC family, ACS140 enriched ABB drives. Despite its small size, it contains a number of high-performance transmission's features. It is very suitable for gases, liquids, solids handling processes, typical applications include: packaging machines, washing machines, blender, conveyors, pumps and so on.

ABB ACS140 drives have maximum design reliability. OEM distributors can choose cooling mode freely. For flange-mounted, the module generated heat will be dissipated outside the enclosure directly. To further enhance the drives reliability, the number of module's components has been minimized as much as possible.

ABB ACS140 drives output frequency is sensitivity to follow the given signal changes. The average accuracy is better than 1%, fast response, with an average delay time of less than 9 mm.


Features and Benefits:
  • Eight built in macros
  • Five programmable digital inputs
  • One programmable analog output
  • Two analog inputs
  • Two programmable relay outputs
  • PID set point controller
  • Remote mountable keypad
  • DC injection braking
  • UL / CUL Listed / CE Mark
  • Compact DIN rail design
  • Economical price
  • Advanced IGBT technology
    •

Interested?

Order Now!
Input configuration
 		 24-pulse diode rectifier or active front end

Input voltage
 1850 V, 1930 V, 24-pulse diode rectifier
4.16 kV, 6.0 kV, 6.6 kV, 6.9 kV, active front end
Input voltage variation
 ± 10 %, 4.16 kV, 6.0 kV, 6.6 kV
-10% to +5%, 6.9 kV
Input frequency
 50 / 60 Hz
Input frequency variation
 < 5 %
Input power factor
 Diode rectifier: > 0.95
Active rectifier: 1
Input harmonics
 Complies with IEC 61000, IEEE 519, GB/T 14549
Auxiliary voltage
 110 V DC, 220 V DC
110 V, 120 V, 230 V, 50 / 60 Hz
380 V, 400 V, 415 V, 440 V, 460 V, 480 V, 575 V, 600 V, 50/60 Hz, 3 phase
Output power
 		 250 – 3680 kW

 Output voltage
 4.16 – 6.9 kV
 Output frequency
 0  –  75 Hz
 Motor type
 Induction
 Efficiency of converter
 97.5 %
 Motor harmonics
 < 5 % THDi, compatible to standard DOL motors
Enclosure  Standard: IP 21, NEMA 1
Optional: IP 42
Cable entry
 Top / bottom
Altitude  2000 m a.s.l.
Ambient air temperature

+1 °C to +40 °C (optional +50 °C)
External cooling water temperature  n.a.
Noise  < 85 dB(A)
Cooling type  Air
Standards  EN, IEC, CE, NEMA, IEEE, UL
