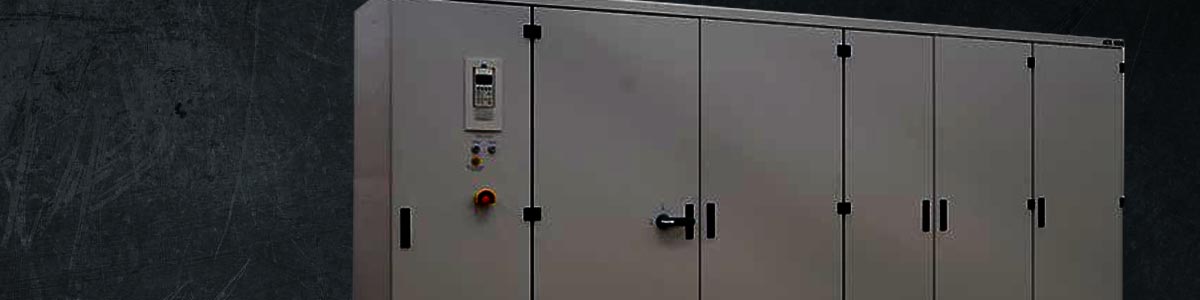

ABB ACS1000

ACS1000
Flexible and reliable: well-proven medium voltage drives for a wide variety of applications

Whatever your industry, the medium voltage ACS1000 drive is an all-rounder to control your standard applications and optimize your processes. Tailor the drive to your specific application by selecting from an extended choice of pre-engineered options. Extensive versatility makes the ACS1000 suitable for operations in different conditions and environments, even hazardous areas. High reliability in your daily business is ensured by the drive`s simple design and robust control platform that has proven itself over many years.


  • High reliability due to proven design and low parts count
  • High compatibility with standard motors due to standard output sine filter
  • Fuseless design
  • Constant network power factor across the whole speed range
  • Direct Torque Control (DTC)
  • Flexible input (DFE with integrated trafo or external trafo, 12/24pulse)
  • Air and water cooled
  • Simple integration: 3 cables in – 3 cables out
  • Arc resistant design
  • Power range 315 kW up to 5 MW
    •

Interested?

Order Now!
Input configuration
 		 12- or 24-pulse diode rectifier

Input voltage

External transformer: 1.3 kV, 1.9 kV and 2.3 kV (on drive input)

Integrated transformer: 2.3 kV, 3.3 kV, 4.16 kV, 6 - 6.9 kV
and 10 - 11 kV*

*Not all supply voltage and frequency combinations are available.
Input voltage variation
 ± 10 %
Input frequency
 50 / 60 Hz
Input frequency variation
 < 5 %
Input power factor
  > 0.95
Input harmonics

Complies with IEC 61000-2-4 and IEEE 519

Auxiliary voltage

110 V DC, 220 V DC

110 – 240 V AC, 50/60 Hz

380 – 690 V AC 50/60 Hz, 3-phase
Output power
 200 – 5000 kW
Output voltage

2.3 kV, 3.3 kV, 4.0 kV, 4.16 kV


Output frequency

0 – 82.5 Hz (higher on request)


Motor type
 Induction
Efficiency of converter

> 98 %, external transformer

> 96 %, integrated transformer
Motor harmonics
 < 2 % THDi
Enclosure

Air-cooled: Standard IP21, optional IP22, IP32 and IP42

Water-cooled: Standard IP31, optional IP42 and IP54
Cable entry
 Top / bottom
