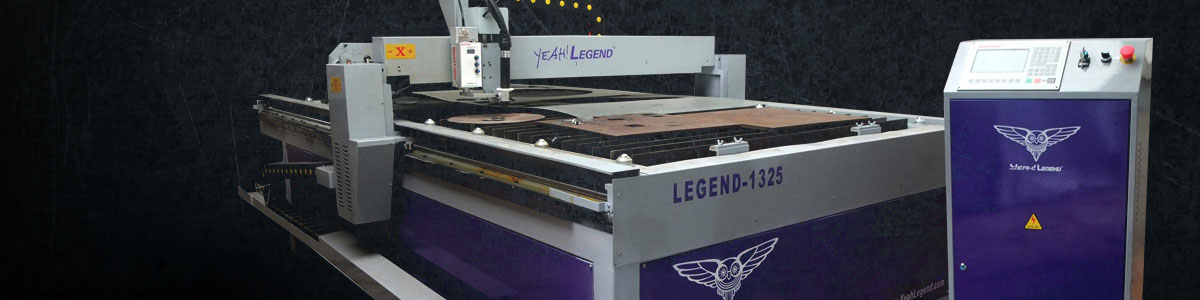

TGX Yeah Legend!B5II

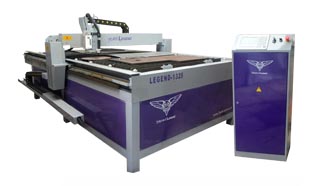

Economical Table CNC Plasma Cutting Machine

As a type of economical table CNC plasma cutting machine,the unique design of Legend B5II economical table CNC plasma cutting machine enables Legend B5II ‘one machine with two functions’.

Legend B5II economical table plasma cutting machine has the capability to enter the AD and HVAC industry,which can meet the requirements of customer for cutting different thickness.

Legend B5II table plasma cutting machine has three unique cutting modes,and customers can use Legend B5II economical table plasma cutting machine achieve excellent sheet plate cutting performance by applying the platen mode,water cooling mode and Arc voltage sensing THC mode.All these can be easily achieved-just by changing the cutting head of Legend B5II economical plasma cutting machine.

Order Now!
The Technical advantages of Legend B5II economical table plasma cutting machine:
  • Legend B5II cutting machine’s cutting thickness range: 0.3-22mm.
  • Three modes of cutting in Legend B5II cutting machine: water jacket, platen, arc voltage sensing THC.
  • Ball sesign on Legend B5II cutting table makes loading/unloading of cutting material easier.

Key points of Legend B5II economical table plasma cutting machine:
  • With Arc voltage sensing THC,fine plasma cutting performance.
  • Adjustable distance between THC and cutting table,matching with different torches in Legend B5II economical table CNC cutting machine.
  • Steel-made torch holder,very good durability.
  • With simple design,cutting mode switching is very easy in Legend B5II economical table CNC cutting machine.
LEGEND B5II
Power Supply 110/220V 60/50 Hz 1Kw
Effective Cutting Area 1. 1300X2500: X axis 1300mm Y axis 2500mm
2. 1500X3000: X axis 1500mm Y axis 3000mm
Cutting Mode Plasma Cutting Speed: 0-8000 mm/min
Plasma Cutting Thickness: 0.3-22mm
Z axis range Platen/Water cooling cup: Cylinder mas: 50mm THC: Max 75mm
Max cutting current for plasma power 120 A
Work mode of plasma Non-contact ignition
Marking Speed Recommend 2200mm/min, 0.4Mpa
Marking Precision ≤0.2mm/300mm
Processing Material Carbon steel, stainless steel, copper alloy. nickel alloy and titanium alloy
Longtitudinal Drive System Dual drive step motor
Height control mode Platen/water jacket/THC
Controller LCD 7" display
Machine Size 1. 1300x2500: 2000mm(W)*3300mm(L)*1300mm(H)
2. 1500x3000: 2200mm(W)*3800mm(L)*1300mm(H)
