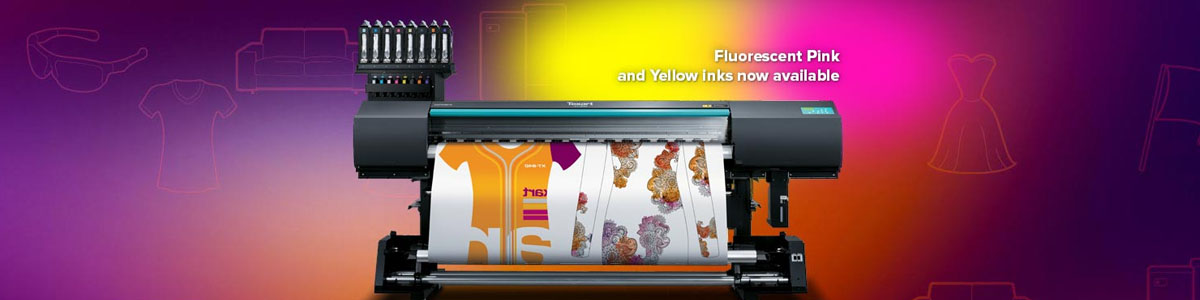

Texart™ XT-640
Developed specifically for dye-sublimation transfer printing, the Texart XT-640 is an unstoppable machine that delivers outstanding print quality on long print runs, day-after-day. By combining Roland reliability with the latest print technology, users can quickly and effortlessly create high-volume sportswear, fashion, soft signage, interior decoration, promotional merchandise and much more.
Texart™ XT-640 Order Now!

A Perfect Balance of Productivity and Quality

With its rugged construction and dual-print heads, the XT-640 Dye-Sublimation Printer is built to meet the most demanding production and quality requirements. It provides machine stability, a choice of ink configurations, including Fluorescent Pink (Fp) and Fluorescent Yellow (Fy), and is one of the fastest dye-sublimation printers on the market. Equipped with automatic ink-switching and iPad printer assist features, it also supports unattended printing on long print runs, even in high-speed modes.

Distinguishing Features

  • Durable and lasting build quality for long print runs and non-stop production
  • Dual-print heads increase production speed and maximize color quality with 7-droplet technology
  • 4-color high-speed printing or 8-color printing for wider color gamut and smooth color gradients
  • Roland DG Fluor Color Library offers hundreds of new colors with new Fluorescent Pink and Yellow inks
  • Automatic ink-switching and iPad printer assist for unattended printing
  • Error-free media alignment with new feed adjuster, take-up system and powerful vacuum

Print Error-Free with Advanced New Features

The XT-640 offers exceptional media tracking to prevent alignment errors during production. An advanced vacuum system keeps transfer paper flat for printing, while a convenient new feed adjuster and take-up system prevents media skewing and ensures a correctly wound roll for smooth transition to the heat transfer process.

Texart XT-640 Dye-Sublimation Printer
Printing technology Piezoelectric inkjet
Media Width 10.2 to 64 in. (259 to 1,625 mm)
Thickness Maximum 39 mil (1.0 mm)
Roll outer diameter Maximum 8.3 in. (210 mm)
Roll weight Maximum 88 lbs. (40 kg)
Core diameter *1 3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing width *2
Maximum 63.6 in. (1,615 mm)
Ink
Types Texart Ink (1 Liter pouches)
Colors 4-color (CMYK) and 8-color (Choose from CMYK+LcLmOrVi and CMYK+OrViFpFy options)

Available colors: cyan, magenta, yellow, black, light cyan, light magenta, orange, violet, fluorescent pink, and fluorescent yellow

Printing resolution (dots per inch) Maximum 1,440 dpi
Distance accuracy *3 Error of less than ±0.3 % of distance traveled, or ±0.3 mm, whichever is greater
Dryer *4 Setting range for the preset temperature: 30 to 55°C (86 to 131°F)
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function Automatic sleep feature
Power requirements AC 100 to 120V ±10%, 5.5 A, 50/60 Hz or AC 220 to 240V ±10%, 2.8A, 50/60 Hz
Power consumption During operation Approx. 750W
Sleep mode Approx. 70 W
Acoustic noise level During operation 62 dB (A) or less
During standby 45 dB (A) or less
Dimensions (with stand)) 111.7 (W) x 32.7 (D) x 65 (H) in.
(2,835(W) x 830(D) x 1,650 (H) mm)
Weight (with stand) 471.8 lb. (214 kg)
Environment Power on Temperature: 18 to 25°C (64.4 to 77°F)
Humidity: 35 to 65%RH (non-condensing)
Power off Temperature: 15 to 30°C (59 to 86°F)
Humidity: 20 to 80%RH (noncondensing)
Included items Exclusive stands, power cord, media clamps, media holder, replacement blade for separating knife, Software RIP, User's Manual, etc.
