Color that Leaps off the Print

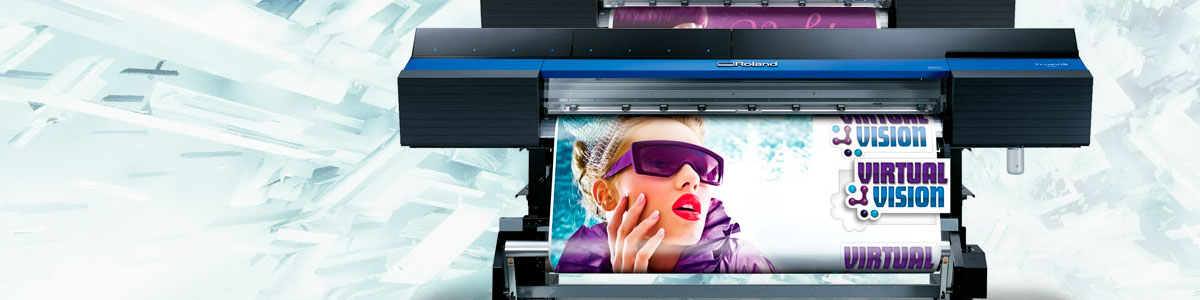

Available in 64-inch and 54-inch models, TrueVIS VG series inkjet printer/cutters feature FlexFire™ printheads and TrueVIS INK that combine to produce vibrant colors and stunning details that cannot be matched by latex or other devices. Efficient and productive TrueVIS VG printers enable users to produce dynamic decals, brilliant banners, striking signs, and vibrant vehicle graphics on demand. With TrueVIS, your vision for maximum color, versatility and profitability is now a reality.
Vibrant Images and Brilliant Results
Everything about the way the TrueVIS produces images has been perfected. Four completely new FlexFire™ printheads fire precision droplets in 3 sizes and a wide print swath. Every drop of ink falls exactly where it is intended, delivering beautiful images and uniform colors at production speeds.
Maximum Ink Quality at Minimal Cost
All new TrueVIS INK is a major step forward in eco-solvent technology, delivering a wide color gamut and improved output, while meeting stricter environmental standards and user demands for lower costs, without sacrificing quality. 500ml pouches fit neatly into reusable cartridges and slide into a hidden ink bay for clean usage and less waste. TrueVIS INK is also GREENGUARD Gold certified and does not require any special ventilation or environmental equipment.
New Cutting Technology Improves Accuracy and Saves Time
Roland DG started with cutting and we haven’t stopped since. The TrueVIS features our most advanced print/cut technology to date. A new carriage and blade offer increased downforce and accuracy, allowing you to work with a wider variety of media.
| Specifications | VG-640 | VG-540 | |
| Printing technology | Piezoelectric inkjet | ||
| Media | Width |
8.3in - 64in (210mm - 1,625 mm) |
8.3in - 54in (210mm - 1,371mm) |
| Thickness | Maximum 39 mil (1.0 mm) with liner for printing | ||
| Maximum 16 mil (0.4 mm) with liner and 9 mil (0.22mm) without liner for cutting | |||
| Roll outer diameter | Maximum 8.3 in. (210 mm) | ||
| Roll weight | Maximum 88 lbs. (40 kg) | Maximum 66 lbs (30 kg) | |
| Core diameter *1 | 3 in. (76.2 mm) or 2 in. (50.8 mm) | ||
| Printing/cutting width *2 |
Maximum 63 in (1,600 mm) |
Maximum 53 in (1,346 mm) | |
| Maximum speed (dual CMYK, 2-pass) | 375 sqft/hr. |
345 sqft/hr. |
|
| Standard speed (dual CMYK, 6-pass) | 153 sqft/hr. | 144 sqft/hr. | |
| Replacable Ink Pouch |
Type | Roland TrueVIS INK | |
| Capacity | 500 cc CMYK Lc Lm Lk +WH | ||
| Colors | CMYKCMYK, CMYKLcLmLk, CMYKLcLmLk+WH | ||
| Printing resolution (dots per inch) | Maximum 900 x 900 dpi | ||
| Cutting speed | 10 to 300 mm/s | ||
| Blade force | 30 to 500 gf | ||
| Blade offset | 0 to 0.059 in (0 to 1.5 mm) | ||
| Software resolution (when cutting) | 0.000984 in/step (0.025 mm/step) | ||
| Distance accuracy (when printing) *3 *4 | Error of less than ±0.3 % of distance traveled, or ±0.3 mm, whichever is greater | ||
| Distance accuracy (when cutting) *3 | Error of less than ±0.4% of distance traveled, or ±0.3 mm, whichever is greater | ||
| When distance correction has been performed (when the setting for [CUTTING MENU] - [CALIBRATION] has been made): Error of less than ±0.2% of distance traveled, or ±0.1 mm, whichever is greater | |||
| Repeatability (when cutting) *3 *5 | ±0.1 mm or less | ||
| Alignment accuracy for printing and cutting *3 *6 | ±0.5 mm or less | ||
| Alignment accuracy for printing and cutting when reloading media *3 *7 | Error of less than ±0.5% of distance traveled, or ±3 mm, whichever is greater | ||
| Media heating system *8 | Print heater | Setting range for the preset temperature: 86 to 112ºF (30 to 45ºC) | |
| Dryer | Setting range for the preset temperature: 86 to 122ºF (30 to 50ºC) | ||
| Connectivity | Ethernet (10BASE-T/100BASE-TX, automatic switching) | ||
| Power-saving function | Automatic sleep feature | ||
| Power requirements | AC 100 V to 120V ±10%, 9.8A, 50/60Hz | AC 100 to 120 V ±10%, 7.5A, 50/60 Hz or | |
| Power consumption | During operation | 1,270 W | Approx. 955 W |
| Sleep mode | 40 W | Approx. 15.1 W | |
| Acoustic noise level | During operation | 64 dB (A) or less | |
| During standby | 41 dB (A) or less | ||
| Environmental | Power on | Temperature: 15 to 32ºC (59 to 90ºF) [20ºC (68ºF) or more recommended], Humidity: 35 to 80%RH (no condensing) | |
| Power off | Temperature: 5 to 40ºC (41 to 104ºF), humidity: 20 to 80%RH (no condensing) | ||
| Dimensions (with stand) | 116(W) x 29.4(D) x 51.6(H) in 2,945(W) x 745(D) x 1,310 (H) mm |
105.8(W) x 29.4(D) x 51.6(H) in 2,685(W) x 745(D) x 1,310(H) mm |
|
| Weight (with stand) |
451.9 lbs (205 kg) |
421 lbs (191 kg) | |
| Included items | Stand, power cord, blade, blade holder, media clamps, media holder, replacement blade for separating knife, software RIP, user's manual, etc. | ||
