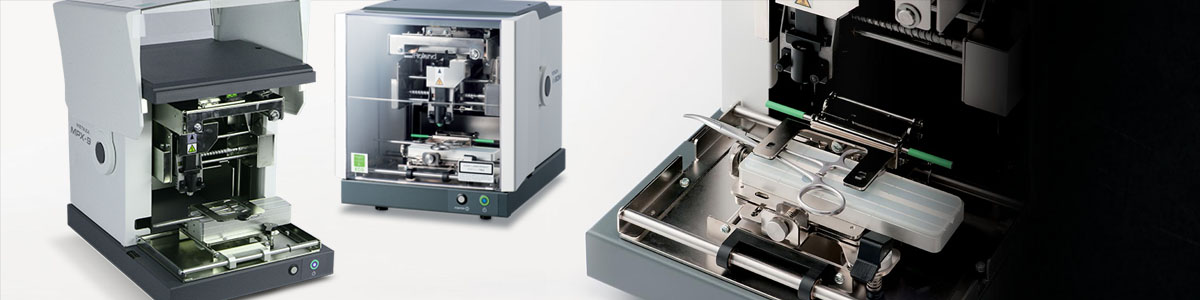

With the MPX-90M UDI barcodes impact printer, marking surgical instruments and tools with unique device identification (UDI) is more precise and affordable than ever. The MPX-90M quickly and accurately imprints large amounts of data in barcode format as small as 1mm2 on materials ranging from surgical steel and titanium to aluminum and acrylic. It does this in the most clean and user-friendly way possible, without debris, odor or fuss.
MPX-95 Order Now!
  • Mark GS1 DataMatrix barcodes for UDI compliance as directed by the U.S. Food & Drug Administration (FDA)
  • Diamond-tipped stylus marks hard materials up to 200 HV
  • Clean, precise workflow with no debris or odors
  • Automatic surface detection for error-free imprinting
  • Bundled METAZAStudio software for easy setup and operation
  • Built-in laser pointer and adjustable XY vise
  • Automated head height function ensures proper image placement
  • Two nose cones facilitate marking on flat and curved surfaces
  • Adjustable XY axis clamping table for holding flat and odd shaped tooling
  • Variable data printing allows automatic imprinting of unique serial numbers, production lot dates and other sequential data

Clean, High-Speed Marking on Hard Metal Surfaces

The MPX-90M uses a durable diamond-tipped stylus to directly imprint on titanium, stainless steel and other hard metals. Engineered for speed and precision, the MPX-90M can quickly imprint up to 26 digits of information inside an area as small as one square millimeter. Because it does not burn or remove material on impact, the MPX-90M generates no odors or debris. No daily maintenance or special power or ventilation is required.

METAZAStudio Software Included

The MPX-90M comes with METAZAStudio software, which instantly converts your numerical data to 2D DataMatrix barcodes that meet GS1 and other formats. In addition to DataMatrix barcodes, the MPX-90M imprints numbers, text, symbols, logos, photos, QR codes and other graphics with precision.

Compact and Easy to Use

With its ease of use, compact footprint and energy-efficient design, the MPX-90M is the ideal solution for small-lot production. Getting started is as simple as firmly securing the item to be marked into the included vise, and then using the built-in laser pointer to locate the center of the material to ensure the graphic is imprinted accurately. The imprinted surfaces will not corrode or degrade over time, ensuring that barcodes will remain readable throughout the product lifecycle.
Printable Material Gold, silver, copper, platinum, brass, aluminum, iron, stainless steel, acrylic, etc. Vickers hardness (HV) of the printable surface must be 200 or less.
Loadable material size 3.94(W) x 7.87(L) x .80(Thick) in. - 100(W) x 200(L) x 20(Thick) mm
or 7.87(W) x 3.94(L) x .80(Thick) in. - 200(W) x 100(L) x 20(Thick) mm
Printable area 3.15 x 3.15 in. (80 x 80 mm)
Resolution High resolution: 265 dpi (Text)
353 dpi (Photo)
529 dpi (High Resolution)
1058 dpi (Vector)
Interface USB Interface (Compliant with Universal Serial Bus Specification Revision 1.1)
Power Supply Dedicated AC Adapter: AC 100V to 240V +/- 10%, 50-60Hz
Machine: DC 19V, 1.6A
Power Consumption Approximately 24W
Acoustic Noise Level Under 70dB (A)
Operation Temperature 50 to 86°F (10 to 30°C)
Operation Humidity 35 to 80% (No condensation)
External Dimensions 11.3(W) x 15.1(D) x 12.2(H) in. - 286(W) x 383(D) x 308(H) mm
Weight 24 lbs (11 kg)
Included accessories AC adapter, power cord, test print material, USB cable, MetazaStudioSoftware CD-ROM, vise and user’s manual
