The Raritan Dominion KX II-101 is a single port, KVM-over-IP switch that provides the secure BIOS level IP access and control of a full-featured KVM-over-IP switch in an inexpensive, portable, non-blocking, palm-size package.
It's perfect for branch offices, development and test labs, and non-traditional environments like: Retail/point-of-sale displays, signage and kiosks; or temporary applications for conventions, construction, medical, and military applications.

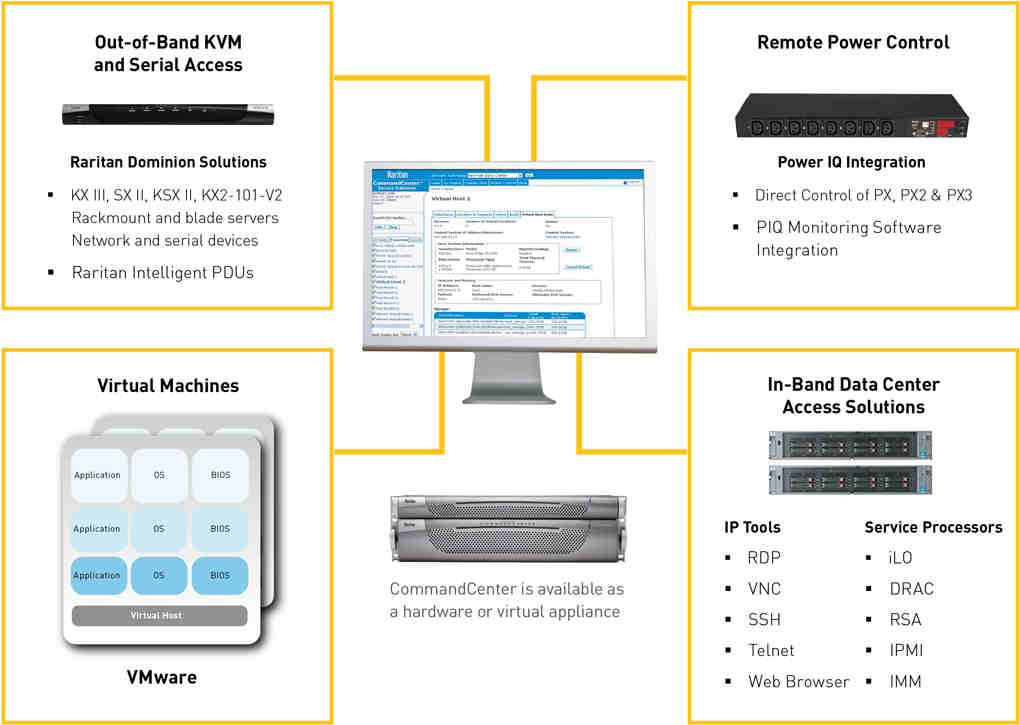

Dominion KVM and Serial appliances, including SX II, KX III, KSX II and KX2-101-V2, integrate with Raritan’s CommandCenter Secure Gateway. With the CommandCenter management system, administrators can manage multiple Raritan devices. Users can access hundreds or thousands of computer and networking devices from a single, integrated system. If you own five or more Raritan appliances, you should consider CommandCenter for centralized management and access.
CommandCenter also provides Remote Power Control, access to VMware Virtual Machines and support of in-band access solutions such as RDP, VNC, SSH and service processors from leading computer manufacturers. CC-SG is a perfect complement to the Power IQ Power Management Solution and enables power control of devices connected to multi-vendor PDU’s managed by Power IQ.

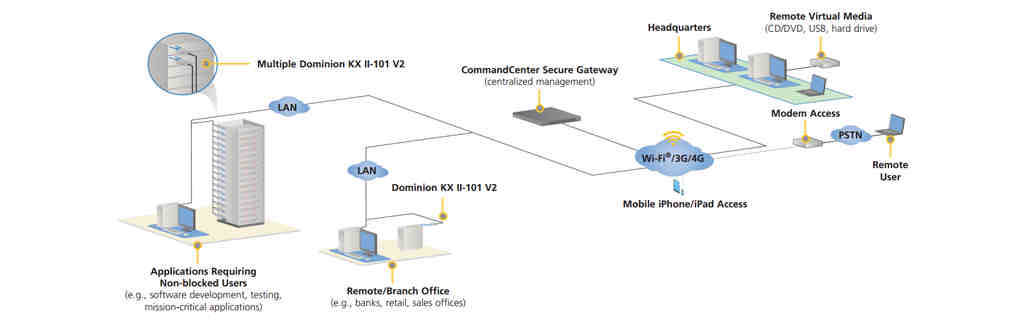

LAN, WAN, Internet, mobile & dial-up access, allowing up to 8 remote admins BIOS-level access to troubleshoot, reconfigure, reboot and power cycle servers remotely.
Fits In the Palm of Your HandPalm-size and portable, it can also be mounted on the side of a rack, making it ideal for small, remote locations with limited space.
Single Pane of GlassWhen used with Raritan's CommandCenter Secure Gateway, scales to accommodate hundreds of users and thousands of devices, and switch power equipment on or off with a single click.
Virtual Media over IPComes equipped with virtual media to enable remote tasks such as software installation, remote booting and diagnostics, using a variety of CD, DVD, USB, internal and remote drives and images.
| FEATURES | DESCRIPTION |
|---|---|
| Dominion Model | DKX2-101-V2 |
| Form Factor | Zero-U form factor; rack mountable vertically or horizontally (bracket kit included) |
| Dimensions (DxWxH) | 3.74" x 2.8" x 0.9"; 95 x 71 x 24mm |
| Weight | 0.42 lbs; 0.19 kg |
| Power | AC Power Adapter 100–240VAC, 47–63Hz, 0.1A, 6 Watts |
| Operating Temperature | 0°–40°C (32°–104°F) |
| Humidity | 20%–85% RH |
| Indicators Device status Network LEDs |
Device status LED indicator Network activity and connection speed indicator |

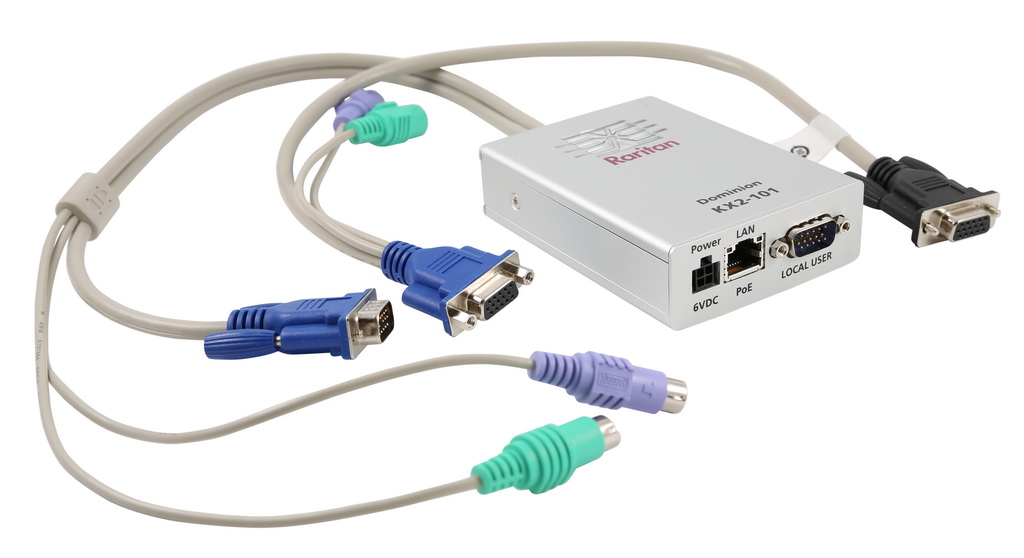

| Local Connection | Local Admin–DB-9(F) Serial KVM Connector–Raritan KVM Cable Local User Video–HD-15(F) VGA Local Mouse/Keyboard–connect to Server USB |
| Remote Connection Network protocols |
1 Ethernet (RJ45) port with activity status indicator. IPv6/IPv4 dual stack, TCP/IP, Telnet, SSH, HTTP, HTTPS, secure LDAP, RADIUS, LDAP, DHCP and SNMP v2 & v3 |
| Sample Screen Resolutions PC graphic mode Sun® video moade |
Up to 1920x1080 @ 60Hz, 640x480 @ 60/72/75/85Hz, 800x600 @ 56/60/72/75/85Hz, 1024x768 @ 60/70/75/85Hz, 1440x900 @ 60/70/75/85Hz, 1680x1050 @ 60/70/75/85Hz, 1152x864 @ 60/75Hz, 1280x1024 @ 60Hz, 1600x1200 @ 60Hz and 720x400 (for DOS) |
