CompuSwitch® | Raritan

Control 2 to 8 PCs from One Keyboard, Monitor and Mouse.

The perfect switch for desktop or rack mount installations

The Raritan family of KVM (Keyboard, Video, Mouse) switch products provides reliable, central control of multiple computers, from the simplest to the most complex requirements. CompuSwitch is Raritan's economical, multi-platform, single-user KVM switch and is available with models for 2, 4 and 8 computers, expandable to control up to 64 computers. Its industrial strength, desktop and rack mount chassis makes CompuSwitch an ideal choice for corporate server rooms, computer test labs and rack mount applications. CompuSwitch helps eliminate the cost and clutter of unnecessary equipment, reclaim space and improve operational productivity for a host of applications:

  • Network server management.
  • Multi-workstation operation.
  • Hardware/software development and testing labs.
  • CTI and other OEM rack mount applications.

Premium performance and reliability

CompuSwitch is built with Raritan's unique, intelligent, emulation technology, which dedicates an individual processor to each connected computer so that each computer always sees its own keyboard and mouse. This prevents keyboard and mouse lockups, and ensures flawless boot up and operation of any mix of computers running any operating system.

CompuSwitch is available in 2-port, 4-port and 8-port models. Connect any mix of PCs (PS/2 or AT), Sun and Mac, running any operating system and cascade CompuSwitch units to control up to 64 computers. Raritan's unique keyboard and mouse emulation ensures flawless operation.

Installation is as easy as connecting computers with our tangle-proof, ultra-thin, double-shielded KVM cables, available in lengths of 2, 6.5, 13, 20 and 30 feet. Simply plug in your keyboard, monitor and mouse to operate.

Selection of computers is done directly by touching the individual port buttons on the front panel of CompuSwitch, or by using hot-key commands from the keyboard. Standard features like AutoScan and AutoSkip make operation simple and convenient.

    Broad Video Display Support

    Supports VGA, SVGA, and XGA video resolution of up to 1600x1200 @60 Hz

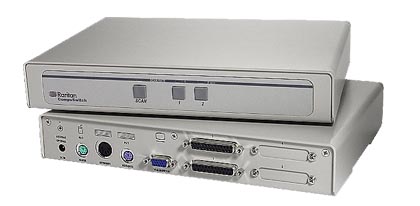

    Desktop Model

    Access and control 2 to 8 servers from one keyboard, mouse and monitor. Expandable up to 64 computers.

    Dedicated Keyboard and Mouse Emulation

    The single-user CompuSwitch® KVM switch ensures flawless boot up and reliable operation on every PC regardless of platform or OS.

    AutoScan / AutoSkip

    AutoScan allows users to scan servers at variable rates for effortless monitoring. AutoSkip allows users to bypass or filter inactive channels.

Models CS2 (2-port) CS4 (4-port) CS8 (8-port) CS4R (4-port rack mount with cable support bracket) CS8R (8-port rack mount with cable support bracket)
Dimensions 10.55" (W) x 7.87" (D) x 1.75" (H)
268mm (W) x 200mm (D) x 44mm (H)
10.55" (W) x 7.87" (D) x 1.75" (H)
268mm (W) x 200mm (D) x 44mm (H)
15.40" (W) x 7.87" (D) x 1.75" (H)
390mm (W) x 200mm (D) x 44mm (H)
19.0" (W) x 13.12" (D) x 1.75" (H)
485mm (W) x 333mm (D) x 44mm (H)
19.0" (W) x 13.12" (D) x 1.75" (H)
485mm (W) x 333mm (D) x 44mm (H)
Weight 3.6 lbs (1.62 kg) 3.6 lbs (1.62 kg) 4.9 lbs (2.24 kg) 6.2 lbs (2.8 kg) 6.2 lbs (2.8 kg)
Power No external power required No external power required No external power required No external power required No external power required
