The New DWX-42W


Intelligent Machine.
Effortless Production.
Superior Results.

From in-clinic to dedicated high-production labs, the DWX-42W is engineered to fit your milling needs.

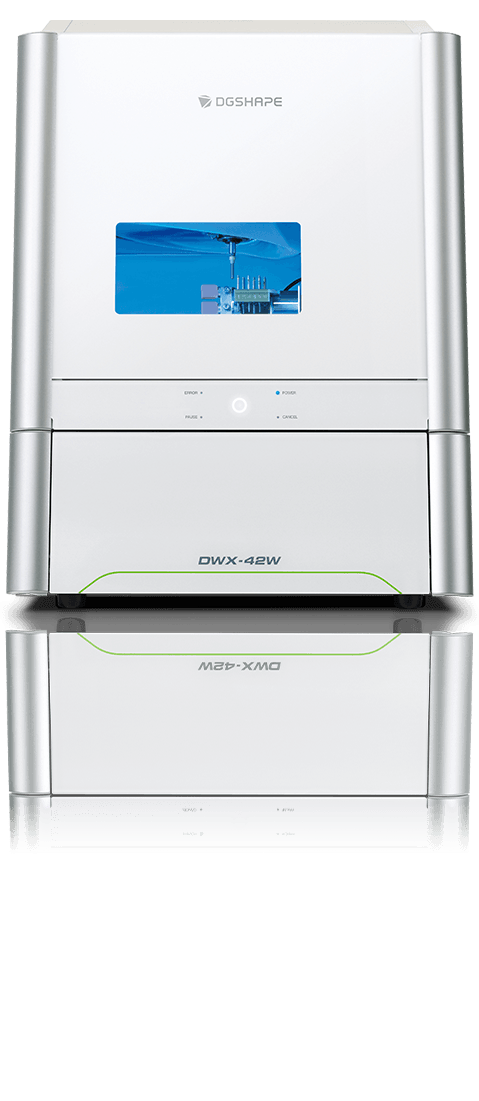

NEW DWX-42W Wet Dental Mill

The DGSHAPE DWX-42W enables wet milling of popular glass ceramic and composite resins with high precision and accuracy.

  • High speed production with proprietary DGSHAPE spindle
  • Expanded 6-tool Automatic Tool Changer for uninterrupted milling
  • LAN capable for easy connectivity
  • Included VPanel for easy monitoring of milling jobs and tools

Incredibly Accurate, High Esthetic Restorations

Materials

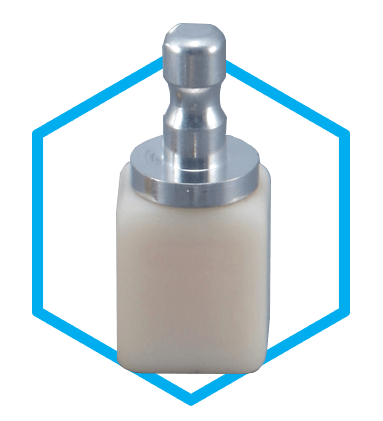

Composite Resin Pin

Composite Resin
Superior margins and chip resistance

Glass Pin

Glass Ceramics
Consistent flexural strength, optimized fit

Applications

3-Unit Bridges
Copings
Crowns
Inlays
Onlays
Veneers
DWX-42w Wet Dental Milling

A Mill That Fits Your Needs

DWX-42W

High Production Lab

  • Expand production by adding a standalone wet-milling option, designed for glass ceramic and composite resin materials
  • Get the same open architecture flexibility and high-quality performance as DGSHAPE dry mills, in a wet-milling configuration
  • Offer on-demand production of high-esthetic, dental prosthetics

Lab Workflow

In-Clinic Lab

  • Offer your patients a same day service with ultra-accurate prosthetics – produced with an easy-to-operate machine and simplified workflow
  • Open architecture allows seamless integration with existing scanning devices
  • Designed to combine with the DGSHAPE d-CLINIC solution




Spindle of the DWX-42W

Specially Designed Spindle

  • 50% LESS Air Pressure Needed
  • Designed and built by DGSHAPE— using over 35-years of cutting-edge engineering excellence
  • A robust, all-metal spindle offers solid performance and maximum efficiency
  • Doesn’t require a high-volume compressor— perfect for in-clinic labs
Less Air Pressure Needed
Close up of DWX-42W Machine

Elevated Performance

Triangle

50% FASTER

than previous generation DGSHAPE wet mill

ATC

6-STATION AUTOMATIC TOOL CHANGER (ATC)

for uninterrupted production

Snowflake

Newly Designed
NOZZLES AND COOLANT TANK
for greater flow and capacity

dual filter icons
Specially Engineered
DUAL FILTERS
require replacement less often, saving cost and time
Burs

Brand new burs offer
GREATER STABILITY & FINE MILLING QUALITY

Enhanced User Experience

New Ethernet LAN Connectivity
Access your device and manage your milling, anywhere in the lab or office.

Upgraded V-Panel
Complex controls are replaced with an easy interface to monitor milling jobs and tool life.

CAM Software Included
Easy-to-use, open architecture CAM software accepts all STL files and supports the milling of relevant materials.

Additional Information

DWX-42W
Millable material Glass ceramics, Composite resin
Loadable workpiece shape Width Maximum 1.57 in (40 mm)
Depth Maximum 0.79 in (20 mm)
Height Maximum 0.79 in (20 mm)
Operating speed 0.24 to 70.9 in./min. (6 to 1,800 mm/min.)
Spindle speed 15,000 to 60,000 rpm
Rotary axis travel angle A axis ±360°
Number of burs housed 6
Attachable bur Shank diameter 3 mm, dedicated milling bur
Compatible compressed air Pressure 0.18 to 0.22 MPA
Air Capacity
 30gal (114L/min) or more
Tank Capacity
 8.7gal (33L) or more
Interface USB, Ethernet (10 BASE-T/100 BASE-TX automatic switching)
Control command set RML-1, NC code
Power requirements AC 100 to 240 V ± 10%, 50/60 Hz (overvoltage category II, IEC 60664-1), 2.1 A
Power consumption Approximately 190 W
Operating noise During operation 70 dB(A) or less (when not cutting)
During standby 48 dB(A) or less
External dimensions Width x Depth x Height 19.0 x 22.0 x 23.6 in. (482 x 560 x 600 mm)
Weight 135 lbs. (61 kg)
Installation environment Indoor use, Altitude Up to 6,562 ft. (2,000m)
Temperature 41 to 82 °F (5 to 28°C)
Humidity 35 to 80%RH (no condensation)
Ambient pollution degree 2 (as specified by IEC 60664-1)
Short-term temporary overvoltage 1,440 V
Long-term temporary overvoltage 490 V
Included items Power cord, USB cable, Dedicated milling burs, Automatic correction jig, Measuring cup, Hexagonal screwdriver, Hexagonal wrench, etc.
