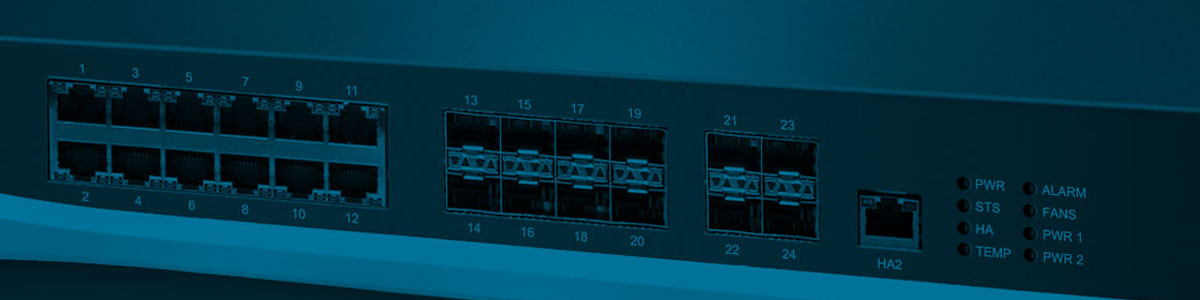

PA 5000 Series
Consistent Architecture, High-Performance Versatility

The PA-5000 Series next-generation firewalls prevent threats, and safely enable applications, across a versatile set of high-performance use cases (e.g., Internet Gateway, DC, and SP environments). The series includes the PA-5060, PA-5050, and PA-5020, which are based on the same architectural foundation as all of our next-generation firewalls.

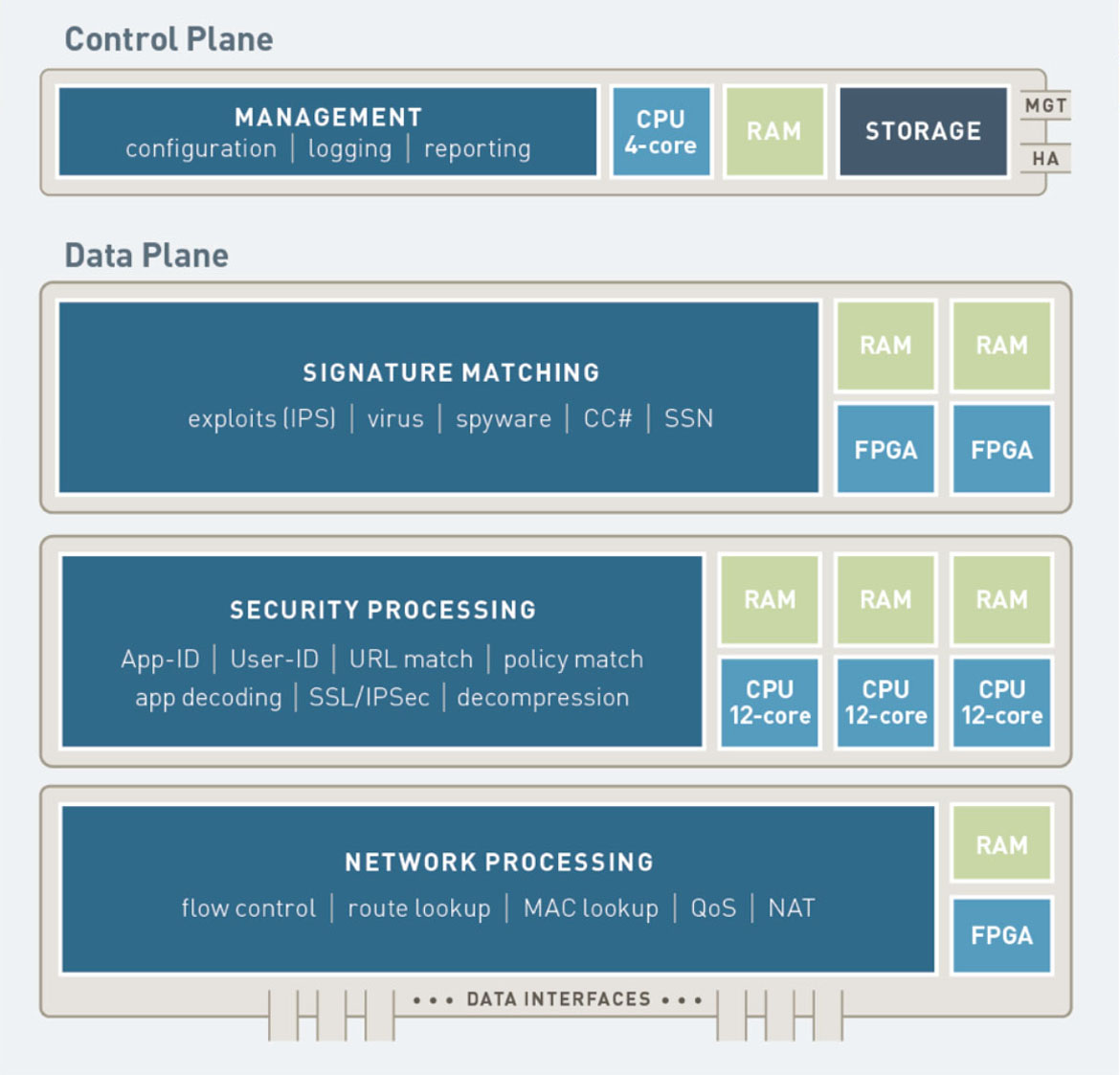

The PA-5000 Series enables you to secure your organization through advanced visibility and control of applications, users, and content at throughput speeds of up to 20 Gbps. Dedicated processing resources assigned to networking, security, signature matching, and management functions ensure predictable performance.


Order Now!
Security
  • Application Visibility & Control (ACC)
  • User Visibility & Control
  • IPS
  • APT Prevention
  • Anti-Malware
  • Command & Control
  • Passive DNS
  • Data Filtering
  • Policy Control
  • Decryption
  • Automated Correlation Engine
  • Exploit Protection

Network Security Management
  • Logging and Reporting

System & Deployment
  • Virtual Systems
  • Redundancy
  • Integration and Automation

Networking
  • IPv6
  • VPN
  • Network Integration
Product Model PA-5060 PA-5050 PA-5020
20 Gbps firewall throughput (App-ID enabled1) 10 Gbps firewall throughput (App-ID enabled1) 5 Gbps firewall throughput (App-ID enabled1)
10 Gbps threat prevention throughput 5 Gbps threat prevention throughput 2 Gbps threat prevention throughput
4 Gbps IPSec VPN throughput 4 Gbps IPSec VPN throughput 2 Gbps IPSec VPN throughput
4,000,000 max sessions 2,000,000 max sessions 1,000,000 max sessions
120,000 new sessions per second 120,000 new sessions per second 120,000 new sessions per second
8,000 IPSec VPN tunnels/tunnel interfaces 4,000 IPSec VPN tunnels/tunnel interfaces 2,000 IPSec VPN tunnels/tunnel interfaces
20,000 SSL VPN Users 10,000 SSL VPN Users 5,000 SSL VPN Users
225 virtual routers 125 virtual routers 20 virtual routers
25/225 virtual systems (base/max2) 25/125 virtual systems (base/max2) 10/20 virtual systems (base/max2)
900 security zones 500 security zones 80 security zones
40,000 max number of policies 20,000 max number of policies 10,000 max number of policies
