PA 3000 Series
Consistent Architecture, Multi-Gig Throughput

The PA-3000 Series next-generation firewalls prevent threats and safely enable applications. The series includes the PA-3060, PA-3050, and PA-3020, which are based on the same architectural foundation as all of our next-generation firewalls.

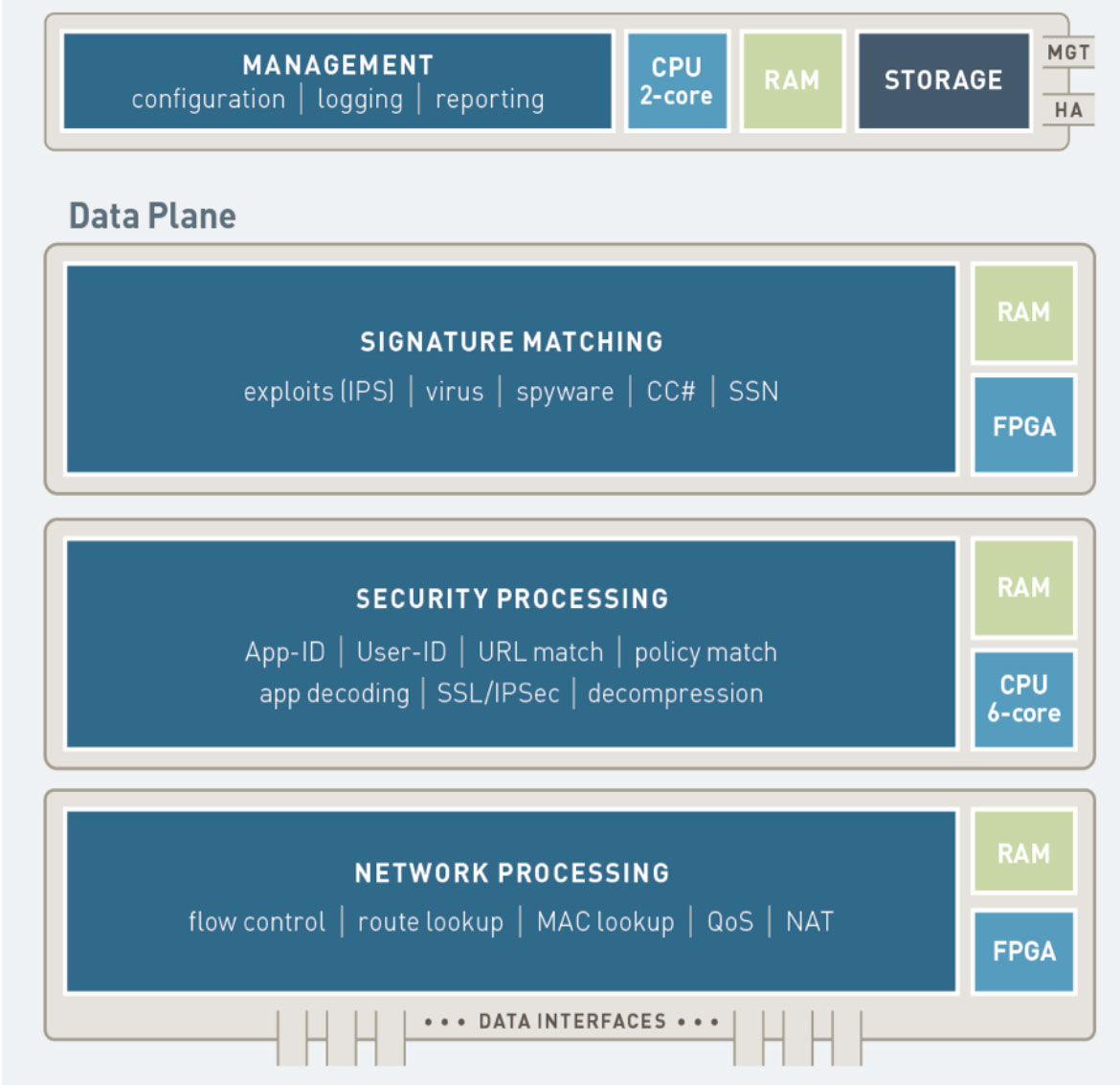

The PA-3000 Series enables you to secure your organization through advanced visibility and control of applications, users, and content at throughput speeds of up to 4 Gbps. Dedicated computing and programmable hardware resources assigned to networking, security, signature matching, and management functions ensure predictable performance.

Order Now!
Security
  • Application Visibility & Control (ACC)
  • User Visibility & Control
  • IPS
  • Anti-Malware
  • Command & Control
  • Passive DNS
  • Data Filtering
  • Policy Control
  • Decryption
  • Automated Correlation Engine
  • Exploit Protection

Network Security Management
  • Logging and Reporting

System & Deployment
  • Virtual Systems
  • Redundancy
  • Integration and Automation

Networking
  • IPv6
  • VPN
  • Network Integration
Product Model PA-3060 PA-3050 PA-3020
4 Gbps firewall throughput (App-ID enabled1) 4 Gbps firewall throughput (App-ID enabled1) 2 Gbps firewall throughput (App-ID enabled1)
2 Gbps threat prevention throughput 2 Gbps threat prevention throughput 1 Gbps threat prevention throughput
500 Mbps IPSec VPN throughput 500 Mbps IPSec VPN throughput 500 Mbps IPSec VPN throughput
500,000 max sessions 500,000 max sessions 250,000 max sessions
50,000 new sessions per second 50,000 new sessions per second 50,000 new sessions per second
2,000 IPSec VPN tunnels/tunnel interfaces 2,000 IPSec VPN tunnels/tunnel interfaces 1,000 IPSec VPN tunnels/tunnel interfaces
2,000 SSL VPN Users 2,000 SSL VPN Users 1,000 SSL VPN Users
10 virtual routers 10 virtual routers 10 virtual routers
1/6 virtual systems (base/max2) 1/6 virtual systems (base/max2) 1/6 virtual systems (base/max2)
40 security zones 40 security zones 40 security zones
5,000 max number of policies 5,000 max number of policies 2,200 max number of policies
