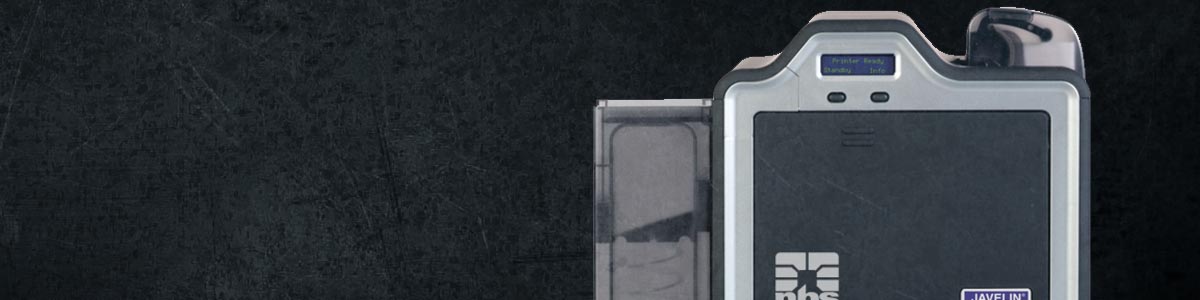

Javelin® J800i

Colours are vibrant. Images are crisp. Quality is second to none. ID cards printed on the Javelin J800i Card Printer do more than protect your organization — they reflect its pride. The Javelin J800i produces ID cards with the highest image quality available. By printing a reverse image on the underside of retransfer film, then fusing the film to the card surface, the Javelin J800i creates an image quality that looks more like a sharp glossy photo than an ordinary ID badge.

Printing on film instead of directly on the card means that the uneven surface of technology cards doesn’t compromise image quality. The Javelin J800i can print up to the edge of smart chip contacts, and over the edge of the card.


HIGH-QUALITY IMAGES WITHOUT THE HIGH PRICE TAG

With the Javelin J800i, the price tag looks as great as the cards it produces. No other card printer delivers high definition images at this price point, making the Javelin J800i feasible for a broad range of organizations.

RELY ON IT FOR MORE THAN GOOD LOOKS

The Javelin J800i is exceptionally reliable, which means less printer downtime. Because the printhead never comes in contact with card surfaces or debris, it’s never damaged in the printing process. In fact, it carries a lifetime warranty.

Cards produced by retransfer printing are inherently more durable and secure than other types of cards. They resist wear and tear by putting a durable layer of retransfer film between the card image and the outside world. They’re also tamper-evident — if a counterfeiter tries to peel apart the layers, the image essentially destroys itself.



Order Now!
COMPACT, FLEXIBLE & EASY-TO-USE
  • A modular design makes it easy to upgrade to fit your needs.
  • Conveniently fits on the desktop or under the counter
  • User-friendly, SmartScreen™ LCD Control Panel
  • Over-the-edge on CR-80 cards

NETWORK AND ENCODING
  • 3-track magnetic stripe encoding (HiCo/LoCo) (option)
  • Contact and contactless smart card encoder
  • USB 2.0 (high speed) and Ethernet with internal print server
Javelin® J800i
Print Mode Single-side printing (option: dual-side printing)
Print Method Dye-Sublimation / Resin Thermal Transfer
Resolution 300 dots per inch (11.8 dots per mm) resolution, 16.7 million colours / 256 shades per pixel
Print speed Batch Mode: • 26 seconds per card / 138 cards per hour (YMC with transfer)
• 32 seconds per card / 113 cards per hour (YMCK with transfer)
• 47 seconds per card / 77 cards per hour (YMCKK with transfer)
• 37 seconds per card / 97 cards per hour (YMCK with transfer and dual-sided, simultaneous lamination)
• 55 seconds per card / 65 cards per hour (YMCKK with transfer and dual-sided, simultaneous lamination
Ribbons • Full-colour, YMC*, 750 prints
• Full-colour with resin black, YMCK*, 500 prints
• Full-colour with two resin black panels, YMCKK*, 500 prints
• Full-colour with resin black and inhibitor panels YMCKI*, 500 prints
• Full-colour with resin black and heat seal panel for difficult-to-print surfaces, YMCKH*, 500 prints
• Full-colour with fluorescing and resin black, YMCFK*, 500 prints
• Resin black, K, 3000 prints
Retransfer Film Options • Clear (1,500 prints) • Standard Holographic (500 prints) • Custom Holographic, special order (500 prints)
Overlaminate Options • Thermal Transfer Overlaminate, .25 mil thick, 500 prints
• CR-80 patch size laminates (1.0 mil thick)
All 1 mil overlaminates available in clear, standard holographic design or custom holographic design (special order)
Single Wire USB 2.0 encoding options • ISO Magnetic Stripe Encoding, dual high- and low-coercivity, Tracks 1, 2 and 3
• Contactless Smart Card Encoder (iCLASS and MIFARE)
• Contact Smart Card Encoder reads from and writes to all ISO7816-1/2/3/4 memory and microprocessor smart cards (T=0, T=1) as well as synchronous cards
Printer interfaces • Printer – Two years
• Printhead – Lifetime; unlimited pass
Printer interfaces USB 2.0; internal USB hub to connect peripheral devices; built-in Ethernet (10/100Mps) RS232 network
Software drivers Windows® 2000 / XP / Server 2003 / Vista (32 & 64 bit) / 7 (32 & 64 bit); Mac OS X v10.4 / v10.5; and Linux
System Requirements x86 based PC or compatible, Windows 2000, Windows XP, Windows 2003, Windows Vista or Windows 7, 500MHz computer with 256MB of RAM or higher, 500MB free hard disk space or higher
Card capacity Input hopper: 100 cards (.030” / .762mm); Output stacker: 200 cards (.030” / .762mm)
Dimensions • 11.50”H x 12.25”W x 9.25”D / 292mmH x 313mmW x 235mmD (excluding Dual Side and Lamination Modules)
Weight 16 lbs. / 7.3 kg. (excluding Dual Side and Lamination Modules
