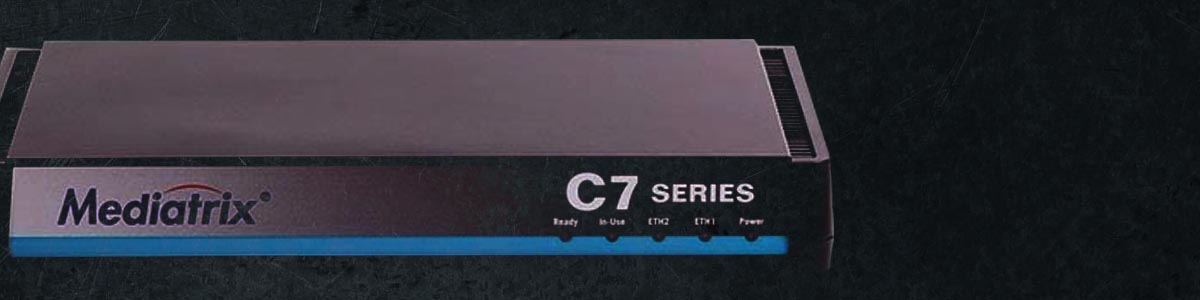

Media5 Mediatrix C710
The Mediatrix C710 VoIP Gateway is a business-class analog gateway featuring 4 FXS ports and 2 10/100 Ethernet ports. The Mediatrix C710's 4 FXS ports allow you to use analog phones or fax machines on a VoIP system, or allow you to connect a legacy analog PBX to a VoIP Service Provider so you can save money with VoIP without replacing your legacy PBX. The Mediatrix C710 supports industry standard codecs such as G.711a/u, G.723, G.726, and G.729a/u.

Mediatrix C710 Overview:
The Mediatrix C7 enables cost-effective VoIP deployments in small offices for both IP Centrex and private network applications. It targets enterprises with brand offices or remote workers, SMB's seeking to realize the cost savings of VoIP and SIP trunking without upgrading their legacy phone equipment, and businesses looking to migrate to VoIP slowly with a migration transparent to its users. The Mediatrix C7 series VoIP gateway offers more than just connectivity. The C710 supports QoS features and includes an integrated VoIP-enabled IP router.


Order Now!
  • 4 FXS Ports
  • 2 x 10/100 Ethernet Ports
  • North American Power Supply included
  • DSP supporting a minimum of 8 bi-directional channels of encrypted and compressed media
  • SIP – RFC3261
  • Dual-Stack IPv4/IPv6 support using ANAT (RFC 4091)
  • Vocoders: G.711 (A-law, μ-law), G.723.1, G.726, G.729a/b
  • G.168 echo cancellation (64 ms)
  • HTTPS, for web pages and for exchange of Configuration File
  • SRTP with MIKEY and SDES: Supported Cypher, AES – 128 bits
  • Call Forward / Call Transfer / Conference Call / Call Waiting support
  • Echo Cancellation / Dynamic Jitter Buffer / Voice Activity Detection / Silence Suppression
  • Message Waiting Indication, via FSK
  • Flash hook event signaling
  • Caller ID Generation (Name & Number) as per Bellcore DTMF or FSK
Manufacturer Mediatrix
Model C710
Marketing Text Mediatrix products are a special order product. Please allow 1-2 weeks for delivery.
# of FXS Ports 4
Connection Types RJ-11
# of Ethernet Ports 2
Protocols Supported SIP
Voice Codec Support G.711 u/a law, G.723, G.726, G.729 a/b
Fax Support T.38, G.711 pass thru, G.726
Provisioning Options Auto Provisioning, HTTP, SNMP, TFTP
Power Power Supply Included
Modular Slots No
MWI Support Yes
PSTN Fallback / Failover No
