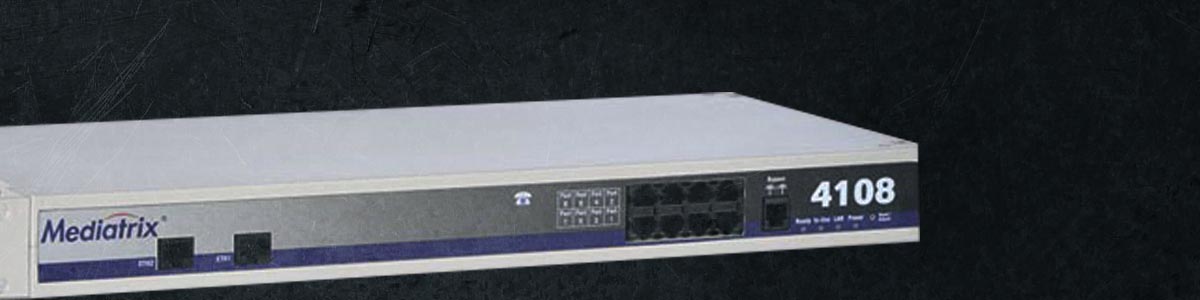

Media5 Mediatrix 4108
The Mediatrix 4108 SIP DGW 2.0 VoIP Gateway is high-quality and cost efficient VoIP gateway connecting larger branch offices and multi-tenant buildings to an IP network, while preserving investment in analog telephones and faxes. The Mediatrix 4108 analog gateway allows Service Providers to deploy rapidly and economically their solutions in medium-size premises and they are the ideal solution for branch office connectivity to larger private networks. The Mediatrix 4108 connects up to 8 analog phones and/or faxes to a broadband modem or LAN.

Mediatrix 4108 SIP DGW 2.0 VoIP Gateway Overview:
The Mediatrix 4108 has the additional benefit of supporting high compression codecs simultaneously on each analog voice ports, thus saving valuable bandwidth. As all other Mediatrix devices, the 4108 provides a web interface, giving users a convenient access to the unit for initial set-up. The devices can also auto-provision by fetching their encrypted configuration from a TFTP or HTTP server, making installation secure and transparent to the end-users. To further facilitate deployments, factory-loaded configurations are possible. In addition, an optional intelligent PSTN bypass allows Mediatrix 4108 users to make emergency calls and maintain their phone service in the event of a power outage or network failure.

Order Now!
  • 8 FXS ports to connect up to 8 analog phones or fax machines
  • 2 x 10/100 ethernet port
  • SIP v5.0 firmware
  • Carrier-grade voice quality
  • Fax over IP support, including T.38
  • PSTN bypass emergency calls
  • Up to 24 simultaneous calls
  • Automatic firmware and configuration file download
  • SNMP and web management
  • TFTP or HTTP auto-provisioning
  • Support for SNMPv3
  • Encrypted configuration files support
  • HTTP Digest authentication
Manufacturer Mediatrix
Model 4108-DGW/SIP
# of FXO Ports 8
Connection Types RJ-11
# of Ethernet Ports 2
Protocols Supported SIP
Voice Codec Support G.711 u/a law, G.723, G.726, G.729 a/b
Echo Cancellation Yes
Fax Support T.38, G.711 pass thru, G.726
Provisioning Options Auto Provisioning, HTTP, TFTP, Web GUI
Mounting Option Rackmount
Power Power Supply Included
Modular Slots No
MWI Support Yes
Peripheral Port RJ-11 PSTN by-pass
