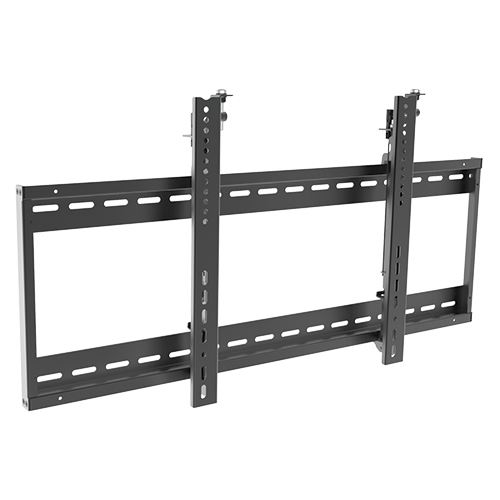

LVW03-46F provides a professional video wall solution while offering the ultimate in versatility and universal compatibility with load capacity of 70kg/154lbs and max. VESA 600x400 hole pattern. Post-installation lateral shift allows screens to slide apart and back together to simplify installation and maintenance. Micro-adjustment at 6 points for seamless display alignment and level. Kickstand provides 12°of tilt for easy cable management and maintenance. It is the perfect solution for public and commercial displays with anti-theft design (require for a padlock).
• Lateral shift brackets enable fast alignment
• Micro-adjustment at 6 points for seamless display alignment and level
• Lock & unlock switch knob help to lock/release display out of the wall plate
• Kickstand allows space for cable management and maintenance
• Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required)
| Product Category: | VIDEO WALL MOUNT |
|---|---|
| By Rank: | Standard |
| Material: | Steel |
| Surface Finish: | Powder Coating |
| Fit Screen Size: | 45"-70" |
| Fit Curved TV: | NO |
| Weight Capacity: | 70kg (154lbs) |
| Strength Tested: | 4 times approved |
| Mounting Hole Pattern: | Universal |
| VESA Compatible: | 200x200,300x300,400x200,400x400,600x400 |
| Max. VESA: | 600x400 |
| Panel Type: | Yes |
| Tilt Range: | -5°~+3° |
| Screen Level: | +/-3° |
| Profile: | 76mm (3") |
