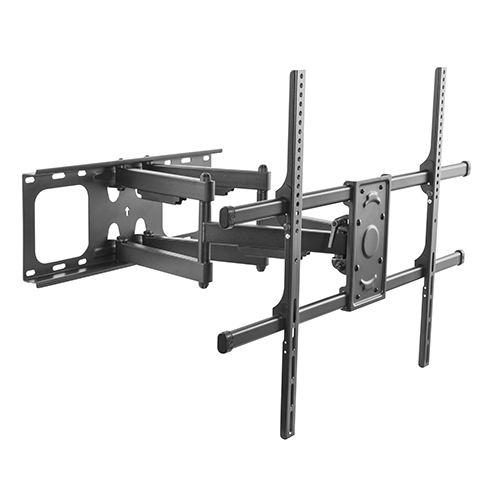

The new solid ultra-large full-motion mount is constructed with high gauge steel that designed for most 50"-90" flat panel TVs up to 75kg/165lbs. This mount allows you to have your flat panel TV tilted for glare control or optimum viewing angle, pulled out from the wall (635mm extension) and angled towards a separate viewing area. Quick lock and release system keeps the TV in place with no tools required. The pre-assembled arm comes with integrated cable management and decorative covers to ensure an elegant and tidy look.
• Quick-release latch locks/unlocks the display in place
• Swiveling arm(s) offer(s) maximum viewing flexibility
• Free-tilting design for multiple monitor viewing angles
• Built-in level adjustment ensures perfect positioning
• Cable management keeps everything organized
| Product Category: | TV wall mount |
|---|---|
| By Rank: | Economy Series |
| Material: | Steel |
| Metal Sheet Thickness | Panel 3mm,Brateck 2mm (Panel 0.12",Brateck 0.079") |
| Pipe Size: | 40X25X1.5mm (1.6"X0.98"X0.059") |
| Surface Finish: | Powder Coating |
| Color: | Black |

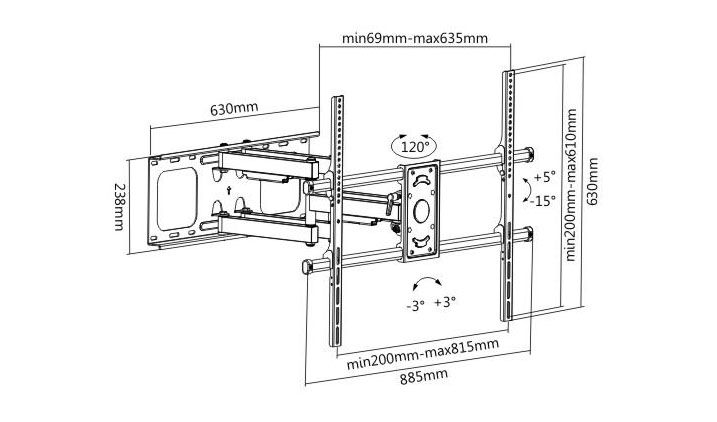

| Dimensions: | 635X885X630mm (25"X34.8"X24.8") |
| Fit Screen Size: | 50"-90" |
| Fit Curved TV: | Yes |
| Weight Capacity: | 75kg (165lbs) |
| Strength Tested: | 2 times approved |
| Mounting Hole Pattern : | Universal |
| VESA Compatible: | 200x200,300x200,300x300,400x200,400x300,400x400,600x400,800x400,800x600 |
| Max. VESA: | 816*610mm |
| Panel Type: | Yes |
| Screen Freely Tilting: | No |
| Tilt Range: | ＋5°～-15° |
| Swivel Range: | +60°~-60° |
| Screen Level: | +3°~-3° |
