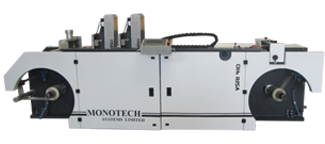

Jetsci VSRI
Variable Data Inkjet Printing, Slitter Rewinder and the Inspection System

Monotech Systems, a renowned name in the supply of state of the art and innovative solutions to the converting, security and label, printing industry for over 18 years; offers it's own in-house developed and manufateured range of high performance slitters and rewinders for label printing industry. VSRI having the capability of printing Variable data (UV or Water Based Inkjet) with JETSCI Y or M series Inkjet Printing System and 100% Camera Inspection and verification or printed variable data. This complete solution is perfectly designed to address the counterfeiting issues smartly. Customer can personalise every label/document with unique barcode, 2D/QR Code, TExt, Number, Images and many more which can be verified by high resolution camera inspection system.



FEATURES
  • Slitter Rewinder (fully servo driven)
  • Speed up to 150 m/min
  • Up to 450 mm web width
  • Loose and tight web tension control
  • 600 x 600 dpi
  • UV curing system
  • Multiple lane Inkjet printing
  • VDP camera inspection
  • Track and Trace module
  • In-line Corona treatment
  • Static eliminator

SUITABLE FOR:
  • Automotive Industry
  • Life Sciences
  • Banking and Financial Services
  • Manufacturing and CPG
  • Healthcare
  • Retail
Jetsci Variable Data Inkjet Printing, Slitter Rewinder and the Inspection System Order Now!
Model M Series Y Series
Inkjet Type Piezo Drop On Demand Inkjet Print head Technology Piezo Drop On Demand Inkjet Print head Technology
Print Width Multiples of 72mm Multiples of 108mm
Web Print Up to 450mm Up to 450mm
Print Resolution 360 x 360 DPI 600 x 600 DPI
Drop Sizes 13pL (8 Level Grey Scale) 6, 7, 11, 14 pL (4 Level Grey Scale)
Speed Up to 75 m/min Up to 100 m/min
Positioning X-Z axis movement of print heads fully controlled through servo motors and touch screen HML X-Z axis movement of print heads fully controlled through servo motors and touch screen HML
Ink Type Aqueous (Water Based) / UV Curable - Arc + LED Aqueous (Water Based) / UV Curable - Arc + LED
Colors Black/Spot Color/Varnish/White Black/Spot Color/Varnish/White
Substrates Paper, Glossy, Coated, PET, BOPP, LDPE, Metallic, Tyvek etc. Paper, Glossy, Coated, PET, BOPP, LDPE, Metallic, Tyvek etc.
System Configuration Industrial PC with 64-Bit Windows 7, 16/32/64 GB Ram, 500 GB Ram Industrial PC with 64-Bit Windows 7, 16/32/64 GB Ram, 500 GB Ram
Data Type CSV, Txt, Xlx, Tiff, Jpeg, and other data base files CSV, Txt, Xlx, Tiff, Jpeg, and other data base files
Camera Type Multiple Lane Line Scan or Area Scan Camera Multiple Lane Line Scan or Area Scan Camera
Inspection Barcodes/QR/2D Codes/OCR inspection and verification Barcodes/QR/2D Codes/OCR inspection and verification
Report Complete report on the verified / rejected labels and comparison with original data base Complete report on the verified / rejected labels and comparison with original data base
Electrical Requirements 110-240 V, 50-60 Hz, 10 A (Inkjet and Camera System) 110-240 V, 50-60 Hz, 10 A (Inkjet and Camera System)
