Intuitive display screen brings you more natural creative experience. What you see is what you write. The high resolution up to 1920 * 1080 can present the details of your artwork with accuracy.

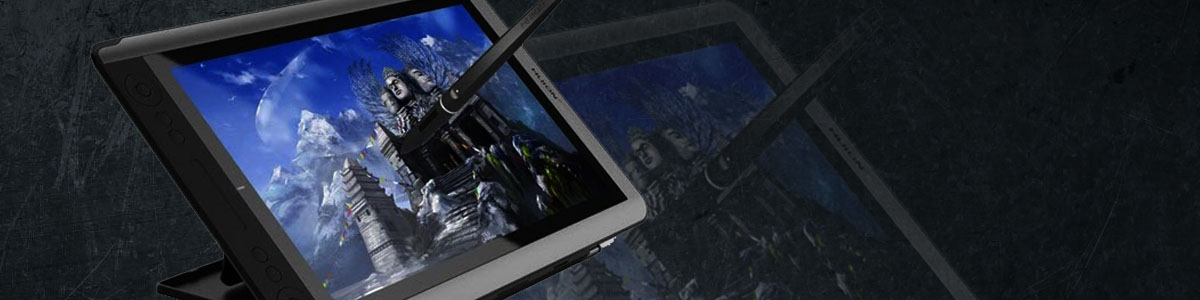

As an up-to-15.6 inches Pen Tablet Monitor, the thickness of the body is well controlled at less than 15mm and only weighs 1.5kg. It’s not only portable, but also suitable for desktop creation.
With the specially three-in-one designed HDMI, power and USB cables for GT156HD, it’s convenient to be cleared up and minimized the occupied space of the desktop.
KAMVAS GT-156HD has a new model of digital stylus pen PE330. With light weight, you will feel comfortable to hold with and it can recognizes 2048 pressure levels. It is allowed to draw line smoother and more accurate on the screen.
You could freely adjust the multi-angle holder depending on your user habits, which is specially designed for GT156HD.
Up to 14 press keys and a touch bar allow you to increase your work efficiency.
Due to the highest level of pressure sensitivity in the industry, you could perform the intensity of each stroke with accuracy.
It’s our first time to use anti-glare AG glass panel on GT156HD so as to perform the original feeling of paper writing. The exquisite frosting surface treatment technology brings you an unprecedented writing experience.
| Technology | Electromagnetic Digitizer |
| Type | TFT LCD |
| Screen Size | 15.6" (Diagonal) |
| Aspect Ratio | 16:9 |
| Display Area (H x V) | 344.16 mm× 193.59 mm |
| Pen Pressure | 2048level |
| Viewing Angle (Typical) | 85°/85°(H)/85°/85°(V) (Typ.)(CR＞10) |
| Pixel Pitch (H x V) | No |
| Native Resolution | 1920*1080（16:9） |
| Resolution | 5080LPI |
| Reading Height | 15mm(Max.) |
| Brightness | 220cd/m² |
| Contrast Ratio (Typical) | 800：1 |
| Number of Colors | 262K |
| Report Rate | 220RPS |
| Response Time | 30ms |
| Video Interface | HDMI |
| Data Communication Interface | USB |
| Power Supply Type | External Adapter |
| Power Supply (Adapter) | Input 100-240VAC ,50/60Hz, Output 12VDC, 1A |
| Operation Power Consumption | 7.5W |
| Standby Power Consumption | No |
| Pen Power Consumption | 200μA(Max.) |
| Errors of Digital Pen Detecting | ±3mm |
| OS Support | Win 10/Windows 8/8.1/Win7/Mac OS 10.10.0 or later |
| OSD Language | English, Traditional Chinese and Simplified Chinese, etc. |
| Operation Temperature | 0 -+40°C |
| Operation Humidity | 20-80% |
| Dimensions/piece | Pen: 13.5 x 177.5mm / Host: 432x264x14.8mm |
| Out Carton Dimensions | No |
| Net Weight/ piece | Pen: 16.5g / Host: 1.5 KG (without holder) |
| Gross Weight/piece | No |
| Rechargable Pen | Minimum 800 hours of continuous use |
