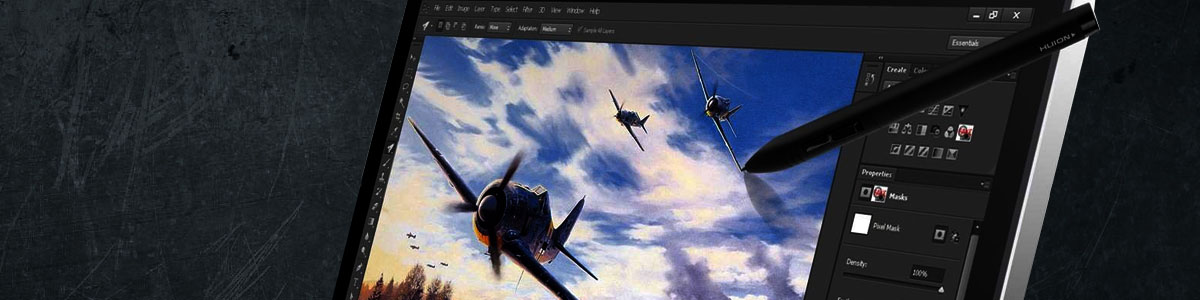

Huion GT-220 v2 is the new and upgraded version of GT-220. With updating antenna, it solved the problem of awaking from automatically sleep mode and cursor offset. Linearity is also greatly optimized in the new version. It is designed to make you feel very professional when you are designing, drawing, sketching or just marking any annotating. The all new packaging also make Huion GT-220 v2 differently.
Huion GT-220 v2 also has an immersive 21.5’’ HD LCD screen with the aspect ratio of 16:9. It allows you to work with a more huge area freely. It can display almost 17 million colors using 1920x1080 pixels. The contrast ratio is 1000:1, brightness 250 cd/m2, and 5ms response time. It has upgraded firmware from 48 feet to 64 feet to make your stylus pen with a more responsive reaction. You will also feel the cursor positioning more precise in HUION GT-220 v2.
Huion GT-220 v2 also has an excellent range of 2048 pressure levels with resolution of 5080 LPI and 233 RPS. These powerful characteristics are delivered to satisfy even highest expectations. With the adjustable stand and wide viewing angle of 178 degrees, you can adjust as you want and it will build you a wide spectrum of useful positions. HDMI, USB, DVI and VGA plugs are provided for your convenience.
The new rechargeable stylus pen for Huion GT-220 v2 is also compatible and universal with GT-185. You can make your creation smoother on the screen with our new rechargeable stylus pen. It can recognize 2048 pressure levels and fully covered by very fine rubber, which prevents slipping from your hands. It can be easily restoring your handwriting and you will feel it like a real pen freely as when using our new rechargeable stylus pen.
Technology | Electromagnetic Digitizer |
Type | IPS Monitor |
Screen Size | 21.5" (Diagonal) |
Aspect Ratio | 16:9 |
Display Area (H x V) | 476.64 mm x 268.11 mm |
Pen Pressure | 2048 Levels |
Viewing Angle (Typical) | H : 178° V : 178° |
Pixel Pitch (H x V) | 0.2485 mm x 0.2485 mm |
Native Resolution | 1920x1080 |
Resolution | 5080 LPI (Lines per Inch) |
Reading Height | 0.12mm 2048 PPI (Pixels per Inch) |
Brightness | 250 cd/m2 |
Contrast Ratio (Typical) | 1000:1 |
Number of Colors | 16.7 M |
Report Rate | 233 RPS (Revolutions per Second) |
Response Time | 5 ms |
Video Interface | VGA DVI HDMI |
Data Communication Interface | USB 1.1 |
Power Supply Type | External Adapter |
Power Supply (Adapter) | Input 100-240 VAC, 50/60 Hz, Output 12VDC, 3A |
Operation Power Consumption | <36W |
Standby Power Consumption | < 1W |
Pen Power Consumption | 300uA (Max.) |
Errors of Digital Pen Detecting | ±3mm (Tilted ±50°from Vertical) |
OS Support | Win 10/Windows 8/Win7/Mac OS 10.8.0 or above |
OSD Language | English, Traditional Chinese and Simplified Chinese, etc. |
Operation Temperature | 5-+40°C (41-104°F) |
Operation Humidity | 10-80 percent (Non-condensing) |
Dimensions/piece | 520mmx40mmx320mm |
Out Carton Dimensions | 558mmx154mmx448mm |
Net Weight/ piece | Net 5.42kg |
Gross Weight/piece | 9kg |
Rechargable Pen | Minimum 800 hours of continuous use |
