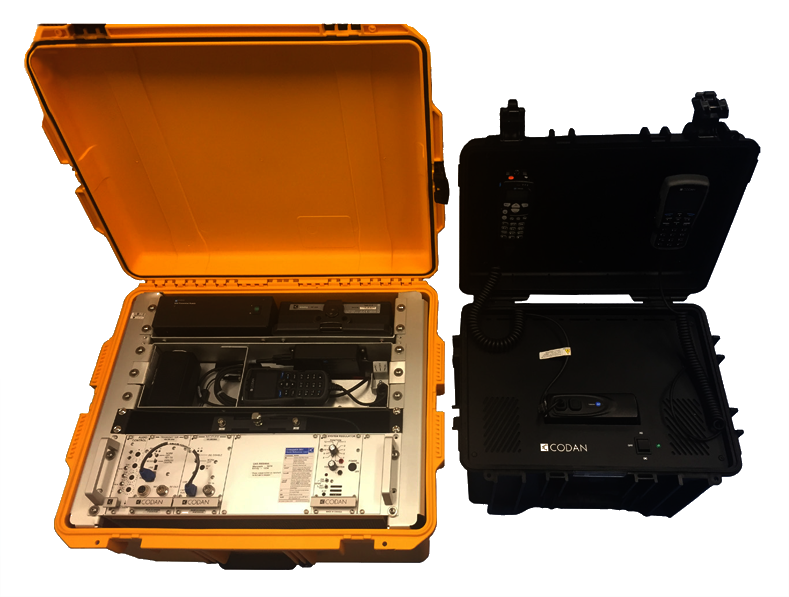

The Mini MRAY Deployable Transceiver is the lightest 125 W, high power deployable HF base station, or HF to 25 W VHF/UHF Crosspatch™ system, operational from AC mains or its own battery supply. Housed in a standard B&W International. Case for rapid deployment, its rugged design provides a critical capability for today’s protection and security forces.
Self-contained, the Mini MRAY Deployable Transceiver can be easily configured enabling rapid installation on both static and mobile platforms. The operator simply connects an antenna and communicates. The Mini MRAY can operate directly from worldwide AC mains using its internal wide-range power supply. With the additional Power Case, the Mini MRAY can operate from its selfcontained power source for up to 66 hours, with recharging possible from various AC and DC sources.
Weighing typically 17 kg depending on the configuration, the Mini MRAY is easily light and compact enough to be transported in passenger vehicles and commercial aircraft.
The MRAY is available in a variety of configurations ranging from HF voice and data communications through to GPS tracking and telephony. With the addition of VHF/UHF transceivers, the MRAY can also operate as a deployable Crosspatch™ or base station repeater. Available in a black or yellow case.
| GENERAL | |
|---|---|
| Channel Capacity | Up to 1000 channels with Envoy™ / up to 32 channels (LMR) |
| Operational time | Up to 66 hours (100Ah SLA battery), 53 hours (80Ah SLA battery) or 24 hours (35Ah SLA batteries) Operational time based on 1:9 Tx:Rx, also dependent upon product configuration |
| Temperature Rating | –30°C to 60°C |
| RF | |
|---|---|
| Frequency range | HF: 1.6 to 30 MHz transmit, 250 kHz to 30 MHz receive LMR: VHF, UHF or 700/800 MHz |
| Power rating | HF: 125 W PEP LMR: 1 to 25 W |
| Operating mode | HF: Single sideband (J3E, USB, LSB, AM, ISB) LMR: FM Analog or P25 Digital |
| RF output impedance | HF: 50 Ω (N-type, female) LMR: 50 Ω (N-type, female) |
| ELECTRICAL | |
|---|---|
| AC operating range | 100 to 240 V AC ±10% 50/60 Hz |
| System operating voltage | 12 V DC nominal (10 to 16 V DC operational) |
| External DC charge range | Battery charge input: 13 to 26 V DC Battery charge output: 8 A max |
| Protection | Fully protected against supply under/over voltage, RF load open/short circuit/high VSWR |
| MECHANICAL | |
|---|---|
| Environmental | Designed to MIL-STD-810G for shock and vibration |
| Dimensions | 495 mm W x 365 mm D x 315 mm H (main case) 575 W x 350 D x 230 mm H (power case) |
| Weight | Approx 17 kg, 31 kg (80Ah battery case) |
| Colour | Black or high-visibility yellow |
