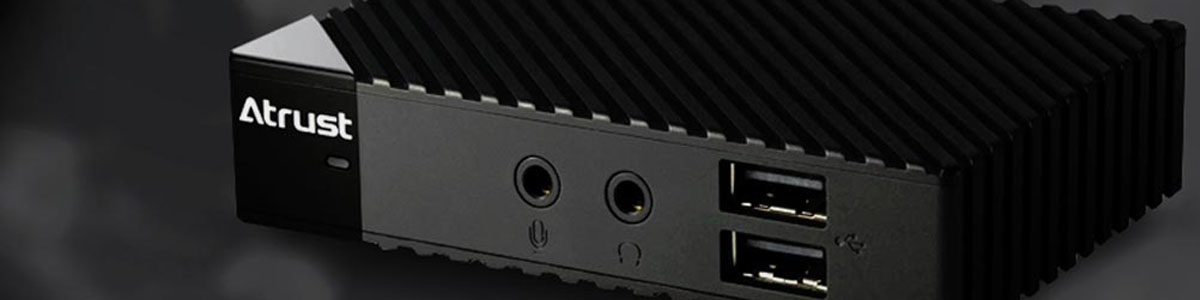

Atrust M321
Atrust m321 is a zero client designed as an endpoint of a shared resource system, such as a MultiPoint Server system. The solution enables a host server to power multiple and independent stations. Each station only consists of one station hub (zero client) with a keyboard, mouse, and monitor connected, allowing multiple users to share the computing power of one single server. Simply through an Ethernet connection, the server provides each station user with a familiar and independent Windows® experience.


Order Now!

Low total cost of ownership (TCO)

Additional computing access is as simple as adding more I/O devices. The total cost of ownership is then drastically reduced.

Slim and quiet design

m321 is feather light weighing only 160g (approximate). The slim design allows it to be mounted to the back of a monitor with a VESA mount. Together with its fanless design, m321 helps create a simple and noiseless workplace environment.

LAN-based connection

m321 connects to the host server with an Ethernet cable. This connection type exceeds the length limit of a USB connection and provides more flexibility in the layout of a MultiPoint Server system.

Simple setup

Just attach a keyboard, mouse, and monitor to your m321, connect it to the host server, and then perform the initial setup. A station is ready for use right away.

Easy management and maintenance

Since all computing tasks are performed on a server, all hardware and software issues are gone on the client side. All user management, software installations, system management, and upgrades are done on a single server.

Processor SOC SMSC UFX6000
Maximum resolution 1920 x 1080
Video VGA-type video output (D-sub 15)
I/O ports 1 x DVI-I
2 x USB A type (for keyboard and mouse)
2 x USB A type (for other USB devices)
1 x Gigabit Ethernet (to the host server)
1 x headphone
1 x microphone
1 x DC IN
1 x Kensington lock slot
Host connection 10/100/1000Mb Gigabit Ethernet
Dimensions (W) 120 x (D ) 80 x (H) 26 mm
Weight 160g (approximate, AC adaptor excluded)
Cooling Fanless
Operating noise No noise
Operating temperature 0℃ ~ 35℃
Non-operating temperature -30℃ ~ 60℃
Operating humidity (Rh) 10% ~ 90% (non-condensing)
Non-operating humidity (Rh) 5% ~ 95%
Operating / Output voltage 100 ~ 240 VAC / +5V DC
Rated line frequency 50 ~ 60 Hz
Rated output current (max) 2A
Server OS Support Windows® MultiPoint™ Server 2012
Userful Multiplatform™
Regulatory CB, NRTL, FCC, CE
Option VESA Mount Kit (W) 114 x (D) 60 x (H) 6 mm
