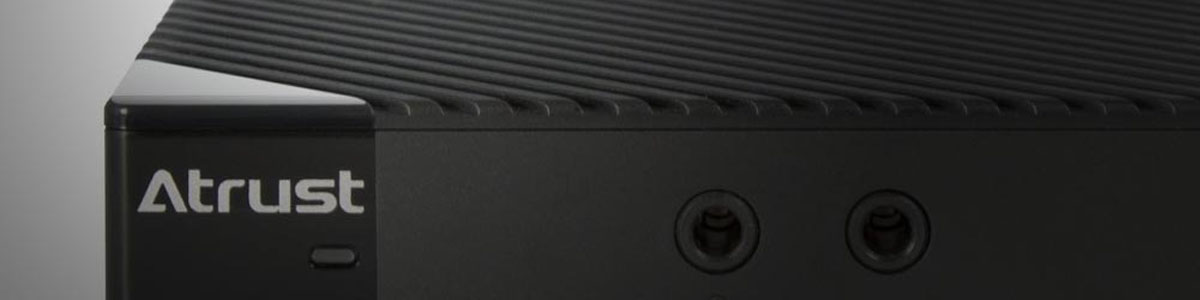

Atrust M300
Atrust m300 is a zero client designed as an endpoint of a shared resource system, such as a MultiPoint Server or Userful Multiplatform system. The solution enables a host server to power multiple and independent stations. Each station only consists of one station hub (zero client) with a keyboard, mouse, and monitor connected, allowing multiple users to share the computing power of one single server. Simply through a USB connection, the server provides each station user with a familiar and independent Windows experience.

Order Now!

Low total cost of ownership (TCO)

Additional computing access is as simple as adding more I/O devices. The total cost of ownership is then drastically reduced.

Low power consumption

Powered by a host server through a USB cable, m300 significantly reduces energy consumption and improves energy efficiency.

Slim and quiet design

m300 is feather light weighing only 104g (approximate). The slim design allows it to be mounted to the back of a monitor with a VESA mount. Together with its fanless design, m300 helps create a simple and noiseless workplace environment.

Simple plug and play setup

Just attach a keyboard, mouse, and monitor to your m300, and then connect it to the host server. A station is set up easily and ready for use right away.

Easy management and maintenance

Since all computing tasks are performed on a server, all hardware and software issues are gone on the client side. All user management, software installations, system management, and upgrades are done on a single server.

Processor SOC SMSC UFX6000
Maximum resolution 1920 x 1080
Video VGA-type video output (D-sub 15)
I/O ports 1 x VGA
1 x USB B type (to the host server)
2 x USB A type (for keyboard and mouse)
1 x headphone
1 x microphone
1 x Kensington lock slot
Host connection USB 2.0
USB cable 3 meters USB cable with B type connector
Dimensions (W) 100 x (D) 66 x (H) 23 mm
Weight 104g (approximate)
Cooling Fanless
Operating noise No noise
Operating temperature 0℃ ~ 35℃
Non-operating temperature -30℃ ~ 60℃
Operating humidity (Rh) 10% ~ 90% (non-condensing)
Non-operating humidity (Rh) 5% ~ 95%
Server OS Support Windows MultiPoint Server 2012
Userful Multiplatform
Regulatory CB, FCC, CE, NRTL
Options VESA Mount Kit (W) 114 x (D) 60 x (H) 6 mm
