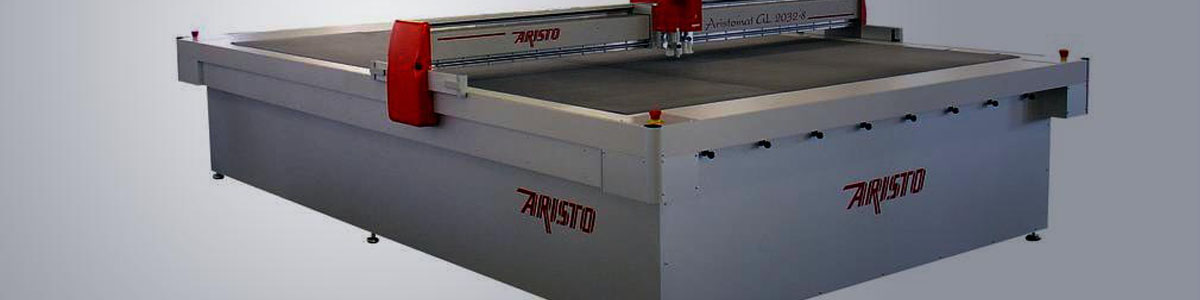

The new generation of the ARISTOMAT GL High Speed Cutters captivate through the new, clear-cut design, most modern technologies, non-slip drive, an efficient matrix-vacuum and the easy user guidance with the PC-Software ARISTO CutterControlPanel. These large format cutters are sturdy and robust in their construction and precise and reliable in their work. These machines, developed for long-term running, cut the most differing materials quickly and reliably and have proved themselves.
Essential functions such as manual control or setting of origin can be carried out from any point of the cutter by means of a mobile control pad.
Additionally for automatic processing, the Cutter can be complemented with a conveyor and a winding system.
|Aristomat GL Series||Outer dimensions
|Max. Work area
|GL 2O32-8||2600 x 4220 x 1090||2040 x 3200||max. 2300 mm/s||max. 2 G|
|GL 2072-8||2600 x 8180 x 1090||2040 x 7160||max. 1700 mm/s||max.1.5 G|
|GL 2432-8||2960 x 4220 x 1090||2400 x 3200||max. 2300 mm/s||max. 2 G|
|GL 3232-8||3800 x 4220 x 1090||3180 x 3200||max. 1700 mm/s||max. 1.5 G|
|GL 3252-8||3800 x 6200 x 1090||4260 x 3200||max. 1700 mm/s||max. 1.5 G|
|GL 4232-8||4890 x 4220 x 1090||4260 x 3200||max. 1700 mm/s||max. 1.5 G|
|GL 4252-8||4890 x 6200 x 1090||4260 x 5180||max. 1700 mm/s||max. 1.5 G|
|Input buffer||PC controlled|
|Suitable for material thickness||max. 55 mm|
|Static repeatability||± 0.08 mm/m @20 degrees centigrade|
|Control circuit and drives||Digital AC servo motors|
|Data format||HPGL compatible, with extended command set|
GL 20xx, 24xx
GL 32xx, 42xx
|5.5 kW or 2 x 5.5 kW pump systems; adjustable matrix vacuum zones
x 5.5.kW or 3 x 5.5 kW pump systems, adjustable matrix vacuum zones
|Voltage||3-phase fixed connection, 400 V, 50 Hz or 460 V, 60 Hz; 20 A with a 5.5 kW pump system,
32 A with a 2x 5.5 kW pump system and 50 A with a 3 x 5.5 kW pump system
|Operating||Universal control software CutterControlPanel for Windows XP; multilingual: English, German, French, Italian, Polish, Dutch, Czech, other languages on request. Mobile control pad.|
