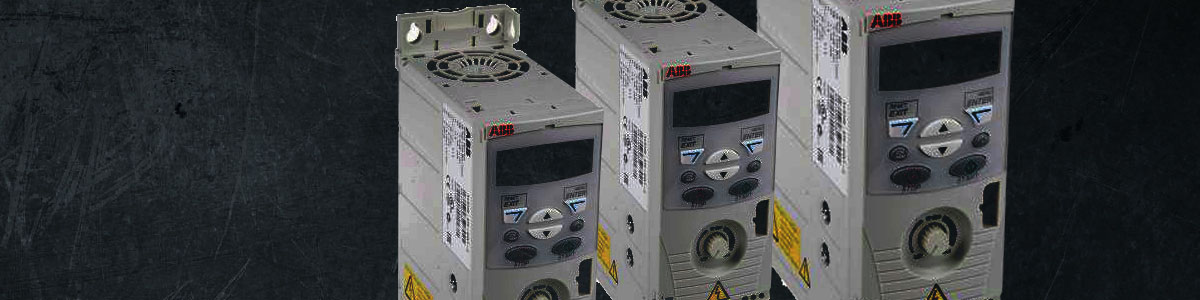

ABB ACS150
Get the very best out of your basic applications

Take smooth performance to the next level with the wide power range and functionality of ACS150. Available in both single and three phase supplies. Many functions are standard, such as PID control, a built-in brake chopper and EMC filter. An optional FlashDrop drive configuration tool makes configuring unpowered drives quick and easy.


  • Power range 0.37 to 4 kW/0.5 to 5 Hp
  • IP20 enclosure
  • Scalar control
  • Integrated user interface and potentiometer
  • Built-in brake chopper
  • Built-in EMC filter for 2nd environment
Order Now!
Mains Connection
Voltage and Power Range 1 phase, 200 to 240V ± 10%
0.37 to 2.2 kW (0.5 to 3 hp)
3-phase, 200 to 240 V ± 10%
0.37 to 2.2 kW (0.5 to 3 hp)
3-phase, 380 to 480 V ± 10%
0.37 to 4kW (0.5 to 5 hp)
Frequency 48 to 63Hz
Power factor 0.98



Motor Connection
Voltage 3-phase, from 0 to Usupply
Frequency 0 to 500 Hz
Continuous loading capability Rated output current I2N
(constant torque at a max. ambient temperature 40oC)
Overload capability
(at a max. ambient temperature of 40oC)
At heavy duty use 1.5 x I2N for 1 minute every 10 minutes
At start 1.8 x I2N for 2 s
Switching frequency
Default
Selectable
4kHz
4 to 12 kHz with 4 kHz steps
Acceleration time 0.1 to 1800 s
Deceleration time 0.1 to 1800 s
Braking Inbuilt brake chopper as standard



Environmental Limits
Ambient temperature -10 to 40oC (14 to 104F), no frost allowed, 50oC (122F) with 10% derating
Altitude
Output current
Rated current available at 0 to 1000m
(0 to 3281 ft) reduced by 1% per 100m
(328 ft) over 1000 to 2000m (3281 to 6562 ft)
Relative humidity Lower than 95% (without condensation)
Protection class IP20 / Optional NEMA 1 enclosure
Enclosure colour NCS 1502-Y, RAL 9002, PMS 420C
Contamination levels IEC721-3-3
No conductive dust allowed
Transportation Class 1C2 (chemical gases)
Class 1S2 (solid particles)
Storage Class 2C2 (chemical gases)
Class 2S2 (solid particles)
Operation Class 3C2 (chemical gases)
Class 3S2 (solid particles)



Chokes
AC input chokes External option.
For reducing THD in partial loads and to comply with EN61000-3-2.
AC output chokes External option.
To achieve longer motor cables.
